NPod | Micro Data Center Solutions

We Optimize Every Aspects of Outdoor Shelter DC Designs.

As one of the pioneers in modular data centers, we follow the trends of the digital future with full attention to the challenges faced by Telecom operators and data center managers. We are dedicated to exploring innovative solutions to provide more energy-efficient, economical, and flexible configurations to better match your current and future needs.

Solution Benefits

Flexibility
  • 24U to 42U cabinet with IP55 protection, access control & video monitoring
  • Compact with standard 19" frame, fits most IT gear
  • Supports 48VDC & AC UPS systems
Optimized Efficiency
  • Wall/rack/in-row cooling for better airflow
  • Cold/hot air separation enhances efficiency
  • Uses inverter compressors, EC fans, green refrigerant
Rapid Deployment
  • Designed for all environments – outdoors, rooftops, warehouses
  • Factory prefab enables fast deployment
Standardized Management
  • Remote monitoring and management with standardized modules
NPOD Cabinet

Various Predefined Cabinet, Fulfill Your Applications.

NPodsolution includes a variety of predefined configurations with multiple options for key components such as cabinets, air conditioning, power systems, monitoring system, access control, fire protection, etc. to meet your various application needs.

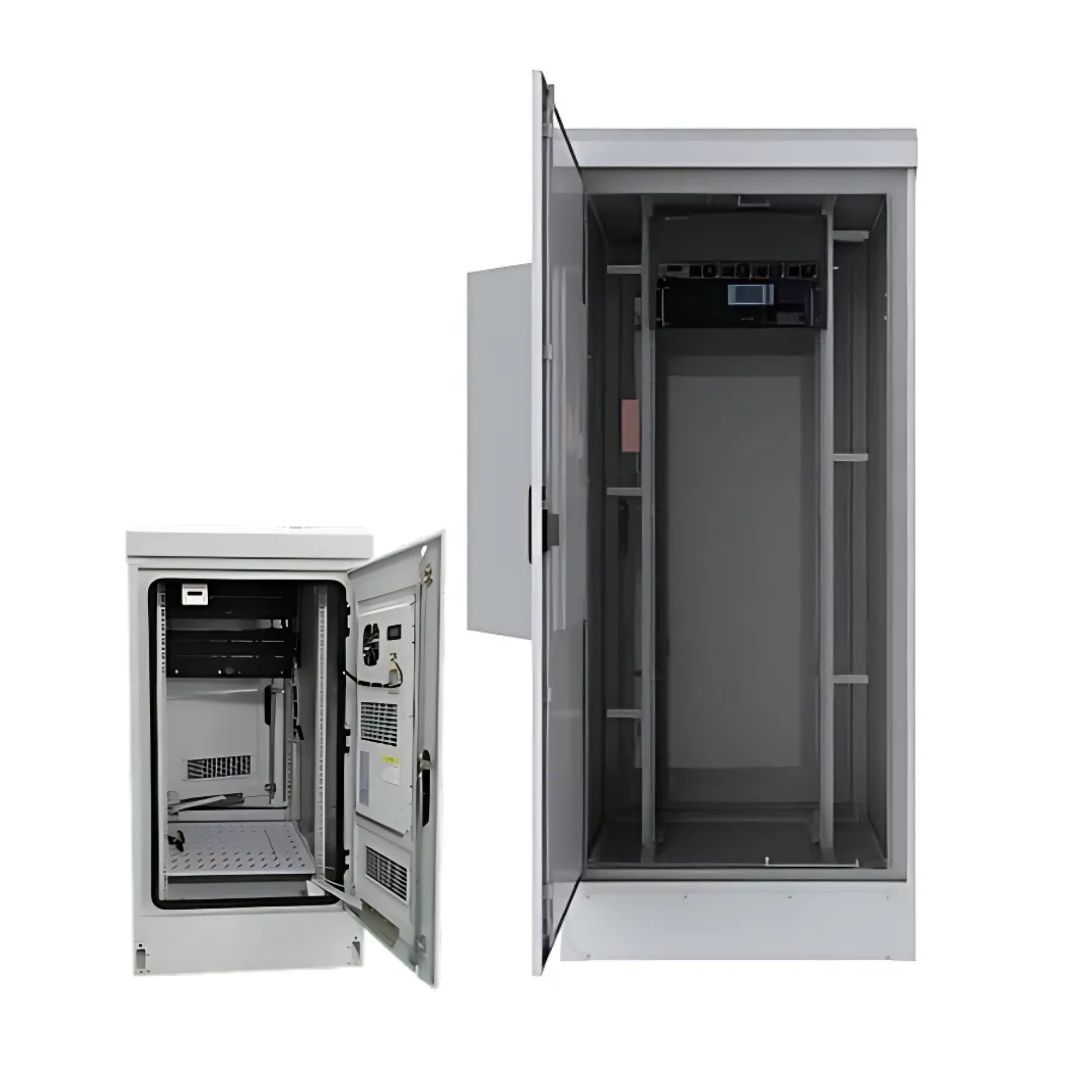

Outdoor Cabinet for Telecom Applications
  • 24U to 42U IP55 water/dust protection prefabricated cabinet with built-in standard 19" frame.
  • Fan ventilation kit and wall mount cooling for optional.
  • Sandwich type steel front & rear door with thermal insulation.
  • Optional wall mount / floor mount installation method.
  • Operating temperature: -40°C ~ 55°C.
Telecom Cabinet
Modular Data Center Cabinet

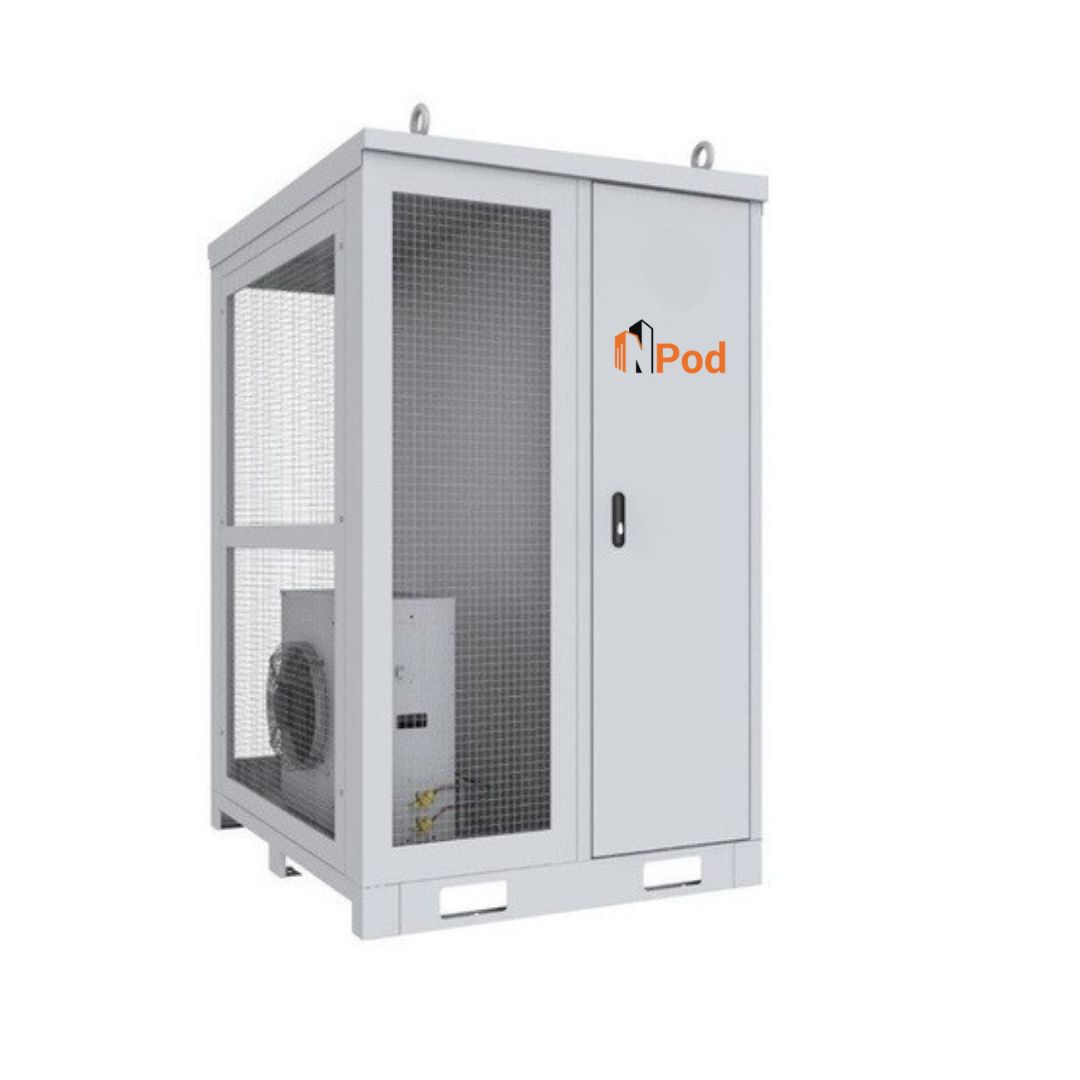

Outdoor Cabinet for Modular Data Center
  • Multiple 1*42U/2*42U/3*42U IP55 water/dust protection prefabricated cabinet with condenser space and rugged support frame.
  • Sandwich type steel front & rear door with thermal insulation.
  • Maintenance access on front and back.
  • Operating temperature: -40°C ~ 55°C.

Adaptable Power Solutions, Ensure Safety at All Moments.

Standard modular design components easy to be integrated into compact cabinets saving space and reducing complexity. Provide efficient, reliable and flexible power protection.

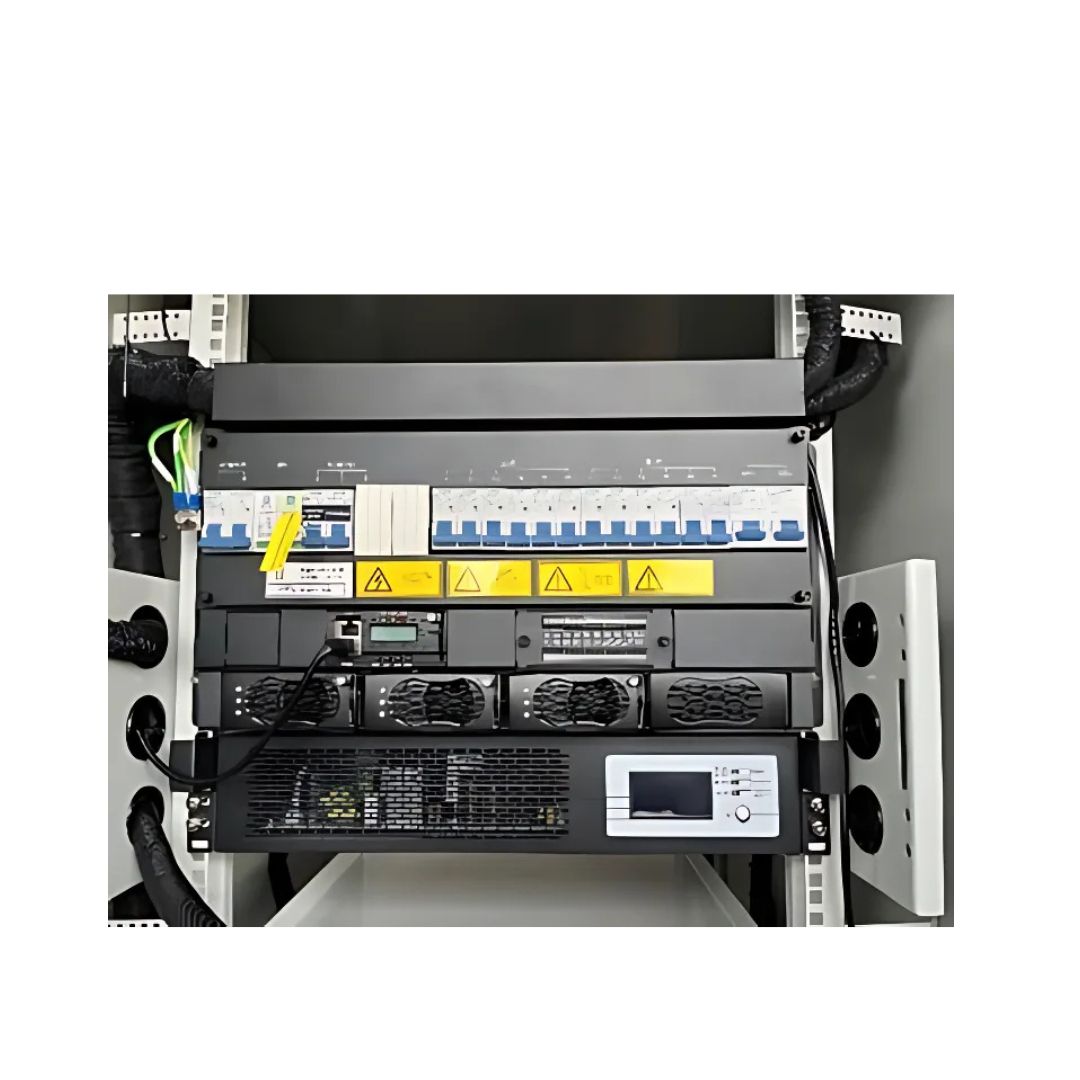

48VDC Power System
  • Standard 19" rack mount design.
  • Rectifier module / Solar module for options.
  • Adopts hot swap technology for Plug and Play installation.
  • Optional EPS Inverter power module, support AC power input equipment.
  • High temperature working up to 75C.
  • Equipped with high performance Lithium-iron battery, provide reliable protection.
  • Support remote monitoring with multi-channel serial port, dry contact, and network interface output.
Telecom Cabinet
UPS AC Power System
UPS AC Power System
  • High frequency UPS module rack mount in modular particle easy expansion and high MTBF.
  • Highly scalable online dual-conversion product with dual DSP technology ensure high ease of use and reliability.
  • Support multiple voltage specifications: 220-240/380-415V.
  • Intelligent battery management features to extend battery life.
  • Powerful network management function, SNMP+USB+RS232 multiple communications, support remote monitoring.
  • 3-600KVA wide range of specifications, suitable for different scale applications.

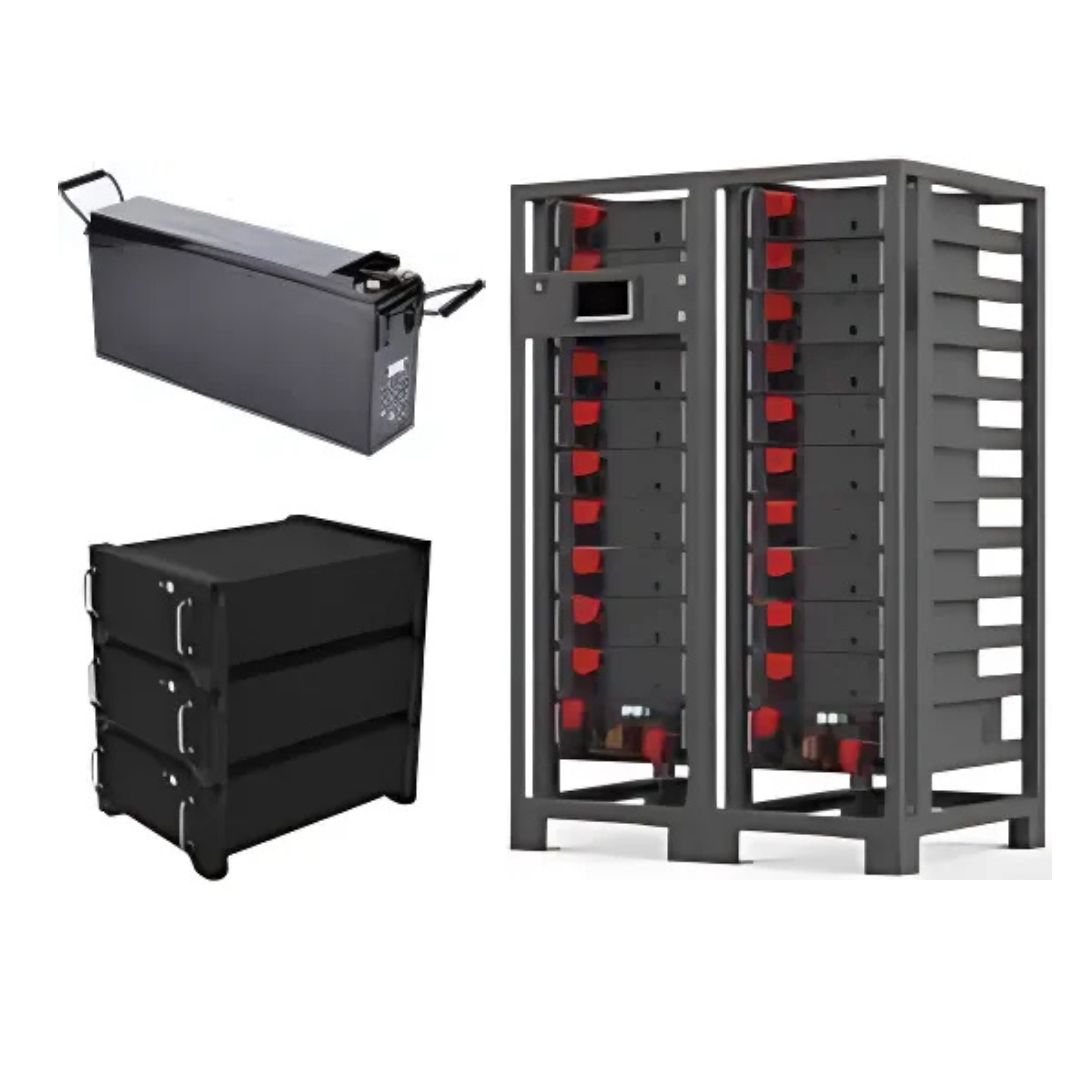

NPod Li Battery System
  • UPS type and 48V Telecom type for optional.
  • UPS type battery module no need complex protocol coupling, plug and play.
  • Safety by full protection including over-current, over-charge, over-discharge and short-circuit, etc.
  • Standard 19" rack mount compact size, easy to installation and integration.
  • Intelligent BMS system for reliable working, alarm, reporting, and remote monitoring.
NPodLi Battery System

Optimized Efficiency with Various Precision Configuration.

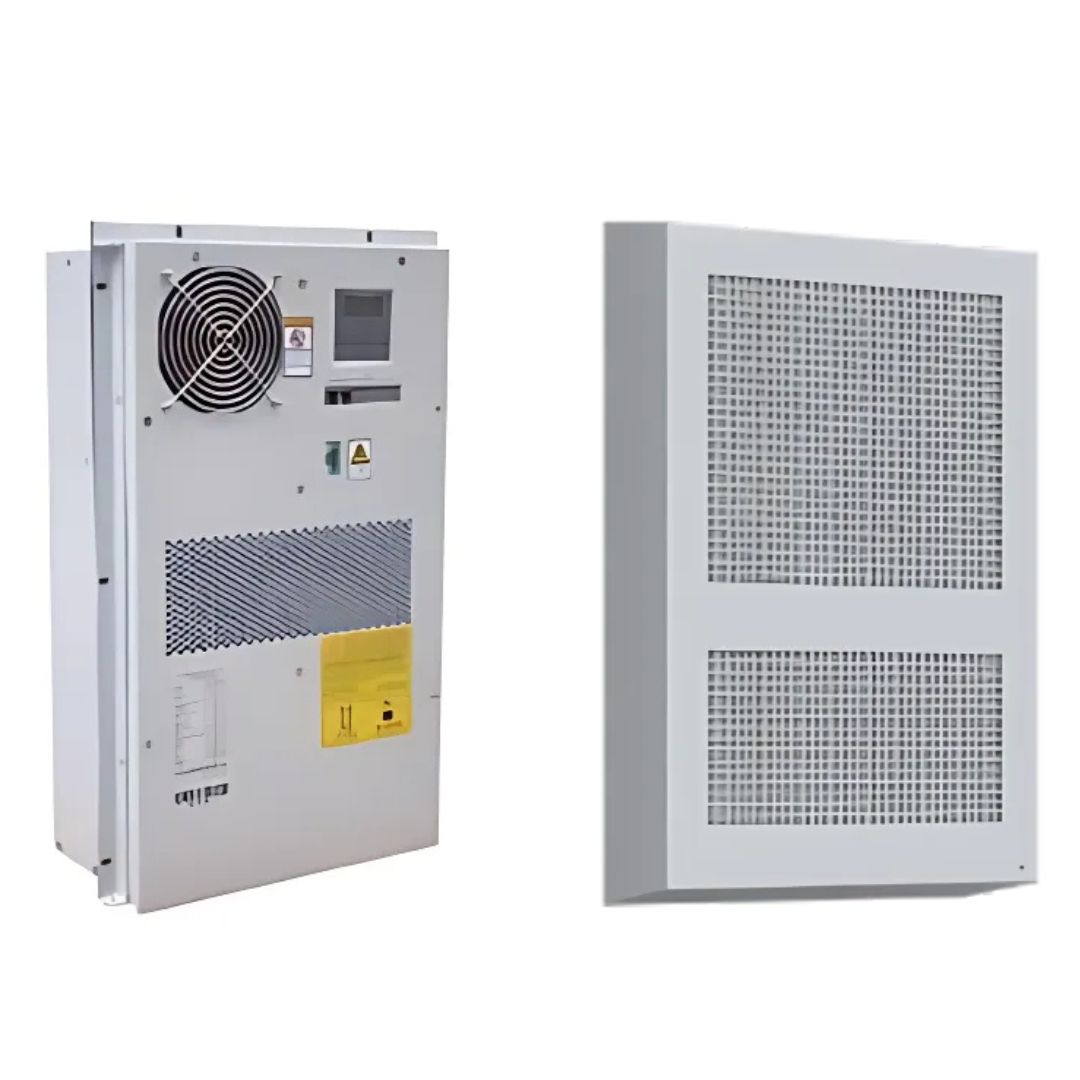

Cooling System for Telecom
  • 48VDC and 208-240VAC input power type for optional.
  • IP55 protection rated in package wall mount design, no occupying of U space.
  • Powder coated sheet metal endures harsh environment
  • Green refrigerant is highly efficient and no ODP.
  • Special design working upto -40C~55C.
Telecom Cabinet
Modular Data Center Cabinet

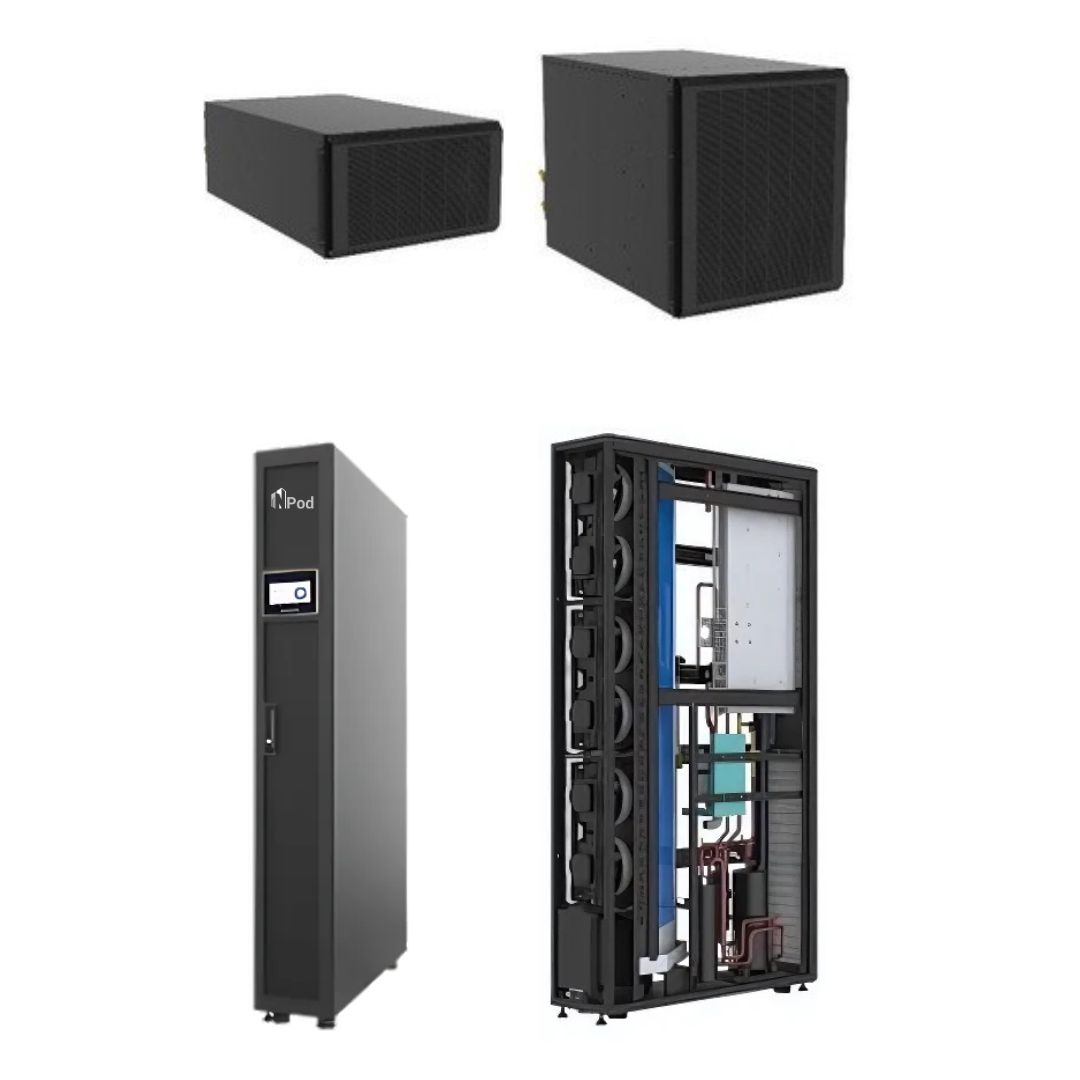

Cooling System for MDC
  • Precision cooling system withminimal energy consumption by high efficient EC fan, inverter compressor,EEV and smart controller system.
  • CFD optimized cold/hot air management system design to match airflow precisely.
  • Optional with indirect free cooling options to furtherly lower down data center PUE.
  • Prefabricated and pre-tested system to deliver designed efficiency with minimum onsite installation and commission jobs.
  • Special design working upto -40C~55C.

Comprehensive Monitoring, Support Your Smarter Decisions.

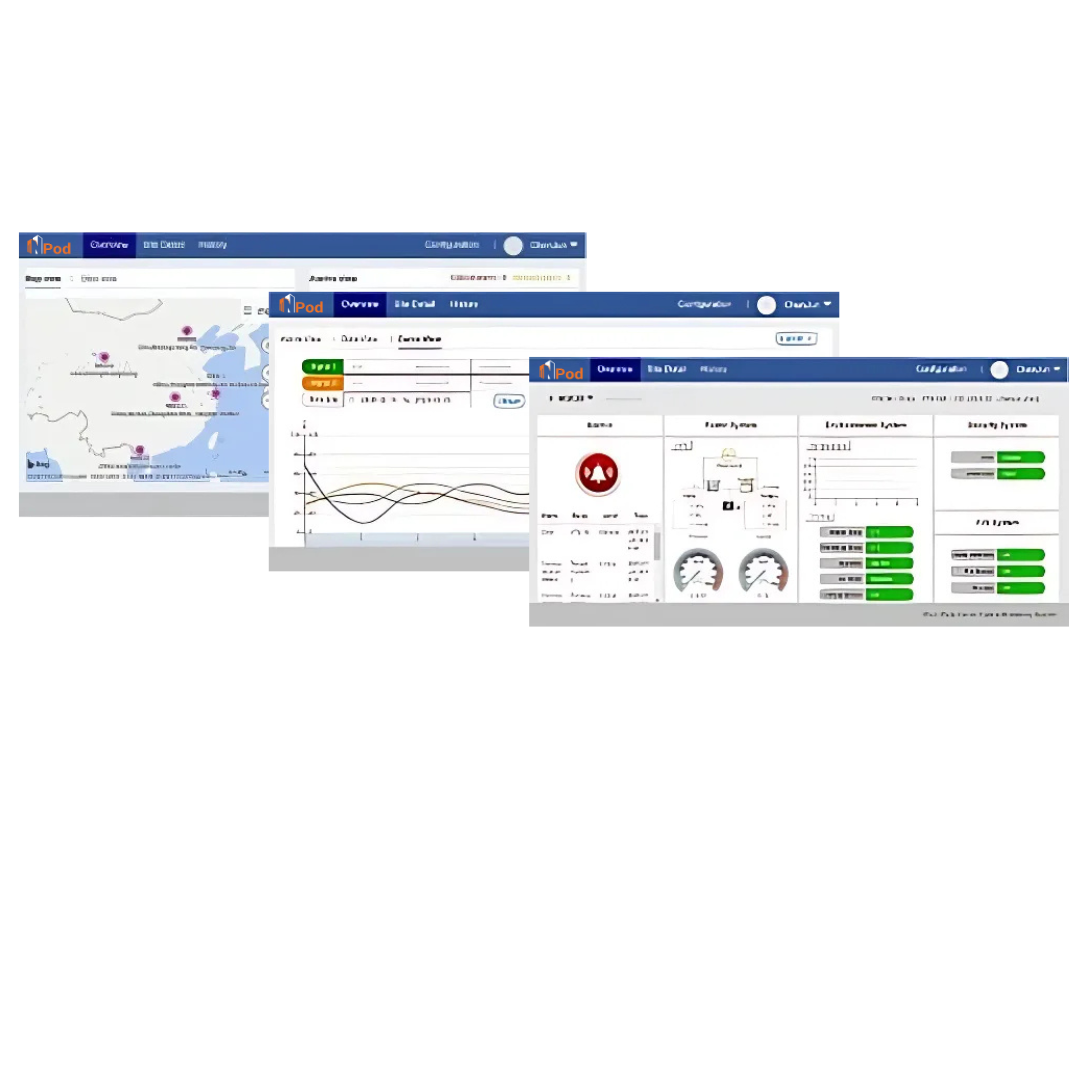

Smart DCIM System communicates with all key aspects through a full range of sensors to monitor the status of the infrastructure. Real-time alerts and notifications allow operators to proactively identify and address any issues promptly. Intelligent monitoring platform open to integrated with your BMS system, achieve remote centralized manage and monitoring, help organizations effectively manage and monitor their infrastructure, ensuring optimal performance, resource utilization, and security.

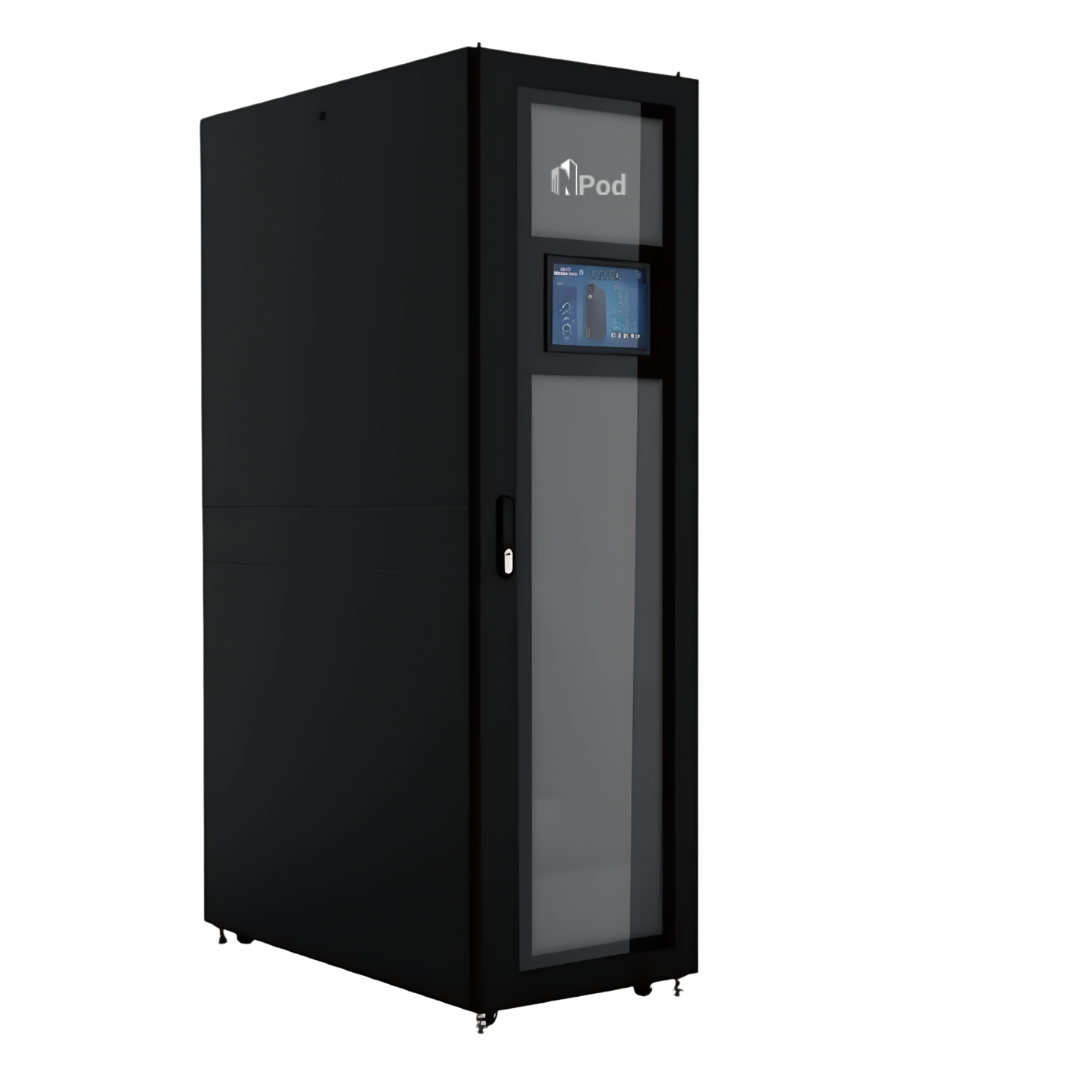

NPOD Smart Cabinet
Second Image
NPOD Smart Cabinet
alternative

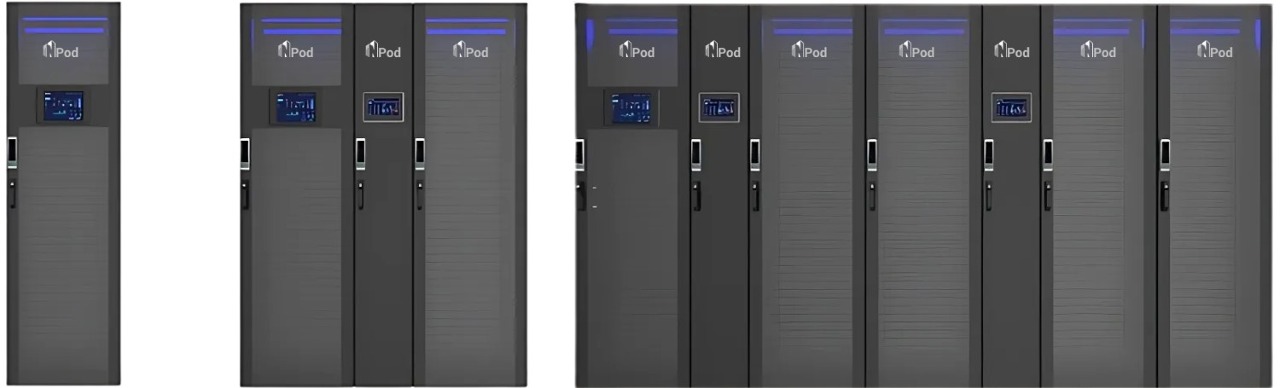

Introducing NPOD - Smart Cabinet Datacenter

Technical Data | US Power –208-230/3P/50~60Hz

Product Model NPOD-03-H01W NPOD-06-H02W NPOD-6-H01K NPOD-10-H02K NPOD-10-H02R NPOD-20-H03K Customize
Available Space for IT -U33U71U26U66U69U94U<= 142U
Available Power for IT -kW1.32.53.55.07.012.0Per Definition
RedundancyNNNN+1 / 2NN+1 / 2NN+1 / 2NPer Definition
Width - mm9001810900181018102600>2600
Depth - mm108010801080108010801080Per Definition
Height - mm210521052105230023002300Per Definition
Weight - kg165345260116011601242Per Definition
IP LevelIP54IP65IP65IP65IP65IP65Per Definition
Input Power208-240V/2P/60Hz208-240V/2P/60Hz208-240V/2P/60Hz208-240V/2P/60Hz208-230V/3P/50-60Hz208-230V/3P/50-60HzPer Definition
Recommended Breaker32A 1P63A 1P63A 1P63A 3P63A 3P63A 3PPer Definition
Power Section
UPS x kVAOptionalOptionalOptional10.013.020.03 - 200kVA
UPS Mount TypeOptionalOptionalRackRackRackRackPer Definition
Standard UPS BatteryOptionalOptional2* VRLA 12V9AH 16PCS2* VRLA 12V9AH 16PCS2* VRLA 12V9AH 16PCS4* VRLA 12V9AH 16PCS< 4 hour
AC PDU1* Basic 8 Slots2* Basic 8 Slots1* Basic 16 Slots2* Basic 16 Slots2* Basic 16 Slots3* Basic 16 Slots4* Configurable
-48VDC - A2* 30A30AOptionalOptionalOptionalOptional0 - 600A
Standard 48VDC BatteryLithium 1* 48V50AHLithium 1* 48V50AHOptionalOptionalOptionalOptional< 4 hour
48VDC Power DistributionBLVD 63A/TerminalsBLVD 63A/Terminals3* 63A/TerminalsOptionalOptionalOptionalPer Definition
Cooling Section
Cooling TypePackaged DXPackaged DXSplit DXSplit DXSplit DXPackaged / SplitCustom
Mount TypeWallWallRackRackRowWall / Rack / RowCustom
Capacity - kW1.52*1.53.95.97.612.81.5 - 90.0kW
DCIM Section
Local DisplayTouch ScreenTouch ScreenTouch ScreenTouch ScreenTouch ScreenTouch ScreenTouch Screen
Remote AccessWeb AccessWeb AccessWeb AccessWeb AccessWeb AccessWeb AccessWeb Access
Reporting ProtocolModbus-TCPModbus-TCPModbus-TCPModbus-TCPModbus-TCPModbus-TCPModbus-TCP
UPS Mgmt.YesYesYesYesYesYesYes
Cooling Mgmt.YesYesYesYesYesYesYes
Temp. & Hum. SensorYesYesYesYesYesYesYes
Fire SensorSmokeSmokeSmokeSmokeSmokeSmokeSmoke
Water SensorYesYesYesYesYesYesYes
Door SensorFront/RearFront/RearFront/RearFront/RearFront/RearFront/RearFront/Rear
Security Section
Access ControlRFID/KeyRFID/KeyRFID/KeyRFID/KeyRFID/KeyRFID/KeyRFID/Key
Video SurveillanceOptionalOptionalOptionalOptionalOptionalOptionalOptional
Fire Fighting Section
Fire ExtinguisherFM200 Rack Module (Opt.)FM200 Rack Module (Opt.)FM200 Rack Module (Opt.)FM200 Rack Module (Opt.)FM200 Rack Module (Opt.)FM200 Rack Module (Opt.)FM200 Rack Module (Opt.)
Early DetectionVesda (Opt.)Vesda (Opt.)Vesda (Opt.)Vesda (Opt.)Vesda (Opt.)Vesda (Opt.)Vesda (Opt.)
