CUSTOM BUILT NPOD CONTAINER EDGE DATA CENTERS

Welcome to Npod India, a leading prefab modular data center pods manufacturer and exporter. NPOD offers next gen smart data center solutions where speed is the essential for digital transformations. IT managers are now able to plan and build high performance data centers that are able to function without interruption. NPOD manufactures mobile modular prefabricated ISO steel containers that are built to host custom infrastructure servers, storage, networking gear, UPS, cooling and fire extinguishing systems.

Its all-in-one design provides one-stop shop for customers with high system integration and reliability. NPOD are easy-to-deploy, secure, weather proof, fire-proof, prefab flexi containers for remote and special applications. It eliminates challenges of deploying data centers in remote fixed sites, industrial environments, and other locations where building space is an issue.

NPOD Features

NPOD Use Cases

  • • Remote Edge Computing
  • • DR (Disaster recovery)
  • • Software-defined Wide Area Network
  • • Innovation lab facilities
  • • Data Management
  • • Cloud Services - private or public cloud
  • • Automation
  • • Big Data Analytics
  • • High Speed Computing
  • • Data Storage
  • • Smart Cities
  • • Service providers

NPOD Modular Components

  • • ISO Standard Steel
  • • Prefab Flexible Container
  • • 20 Feet (20X8X8.5 Ft)
  • • 40 Feet (40X8X8.5 Ft)
  • • PUF Insulation
  • • IT Racks
  • • Air Conditioning
  • • DUCT
  • • PAC
  • • Dehumidifier
  • • Cable Try
  • • Power Distribution
  • • Panel
  • • Fire Suppression system
  • • Fire alarm
  • • CCTV
  • • Computer Desk
Data Center
Server Room
Modular Solution
Energy Management

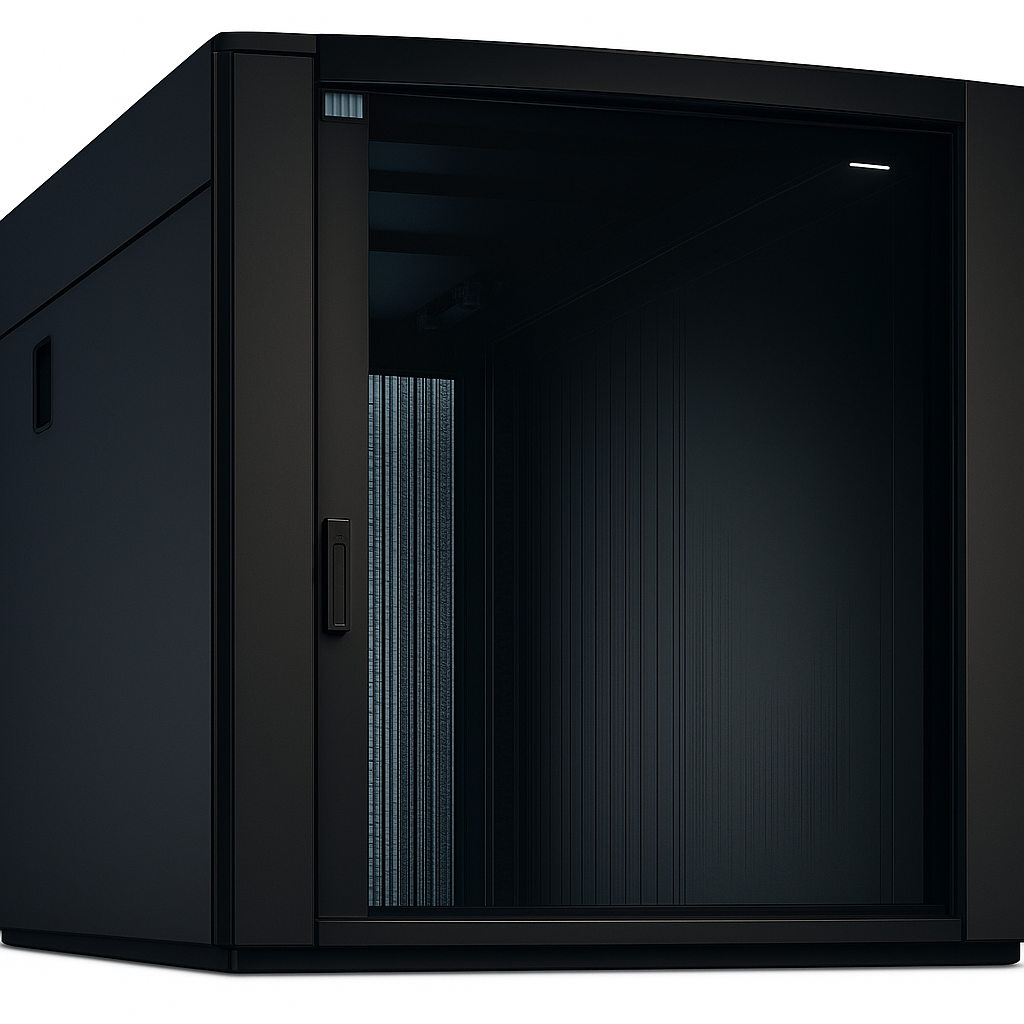

Rack

Multi-functional cabinet developed for large, medium and small data centers. It has the advantages of sturdy structure, strong load-bearing capacity, noble and elegant and assembling structure design. Cabinet integrated three major solutions (power management solution, cable management solution, heat dissipation management solution). It can be used as a modular equipment installation infrastructure, cabinet-type power distribution cabinet, rack mounted battery box, Cabinet integrated user equipment, power distribution, UPS, battery box, and monitoring system, greatly save the equipment area in the computer room.

RACK FEATURES

Construction & Design

19-inch design, EIA standard "G" structure column. High-quality cold-rolled steel plate, the main frame is not less than 2.0mm, the load-bearing layer is not less than 1.5mm, the front and rear door panels are not less than 1.2mm, and the others are not less than 1.0mm.

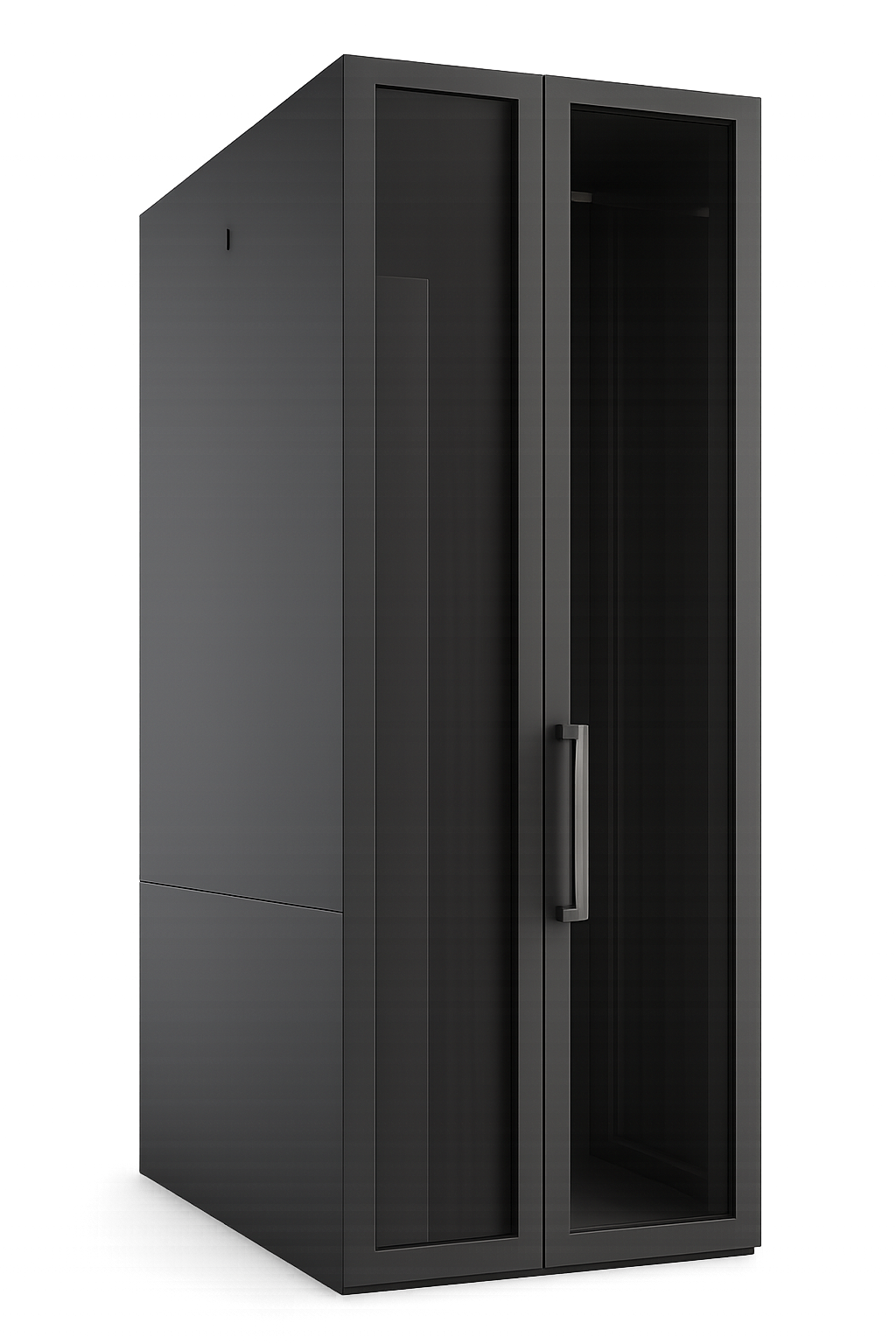

The front door adopts arc or flat door design, it is convenient to move, and it is quick to assemble. The ventilation rate reaches 75%. External hinge, opening angle greater than 130°.

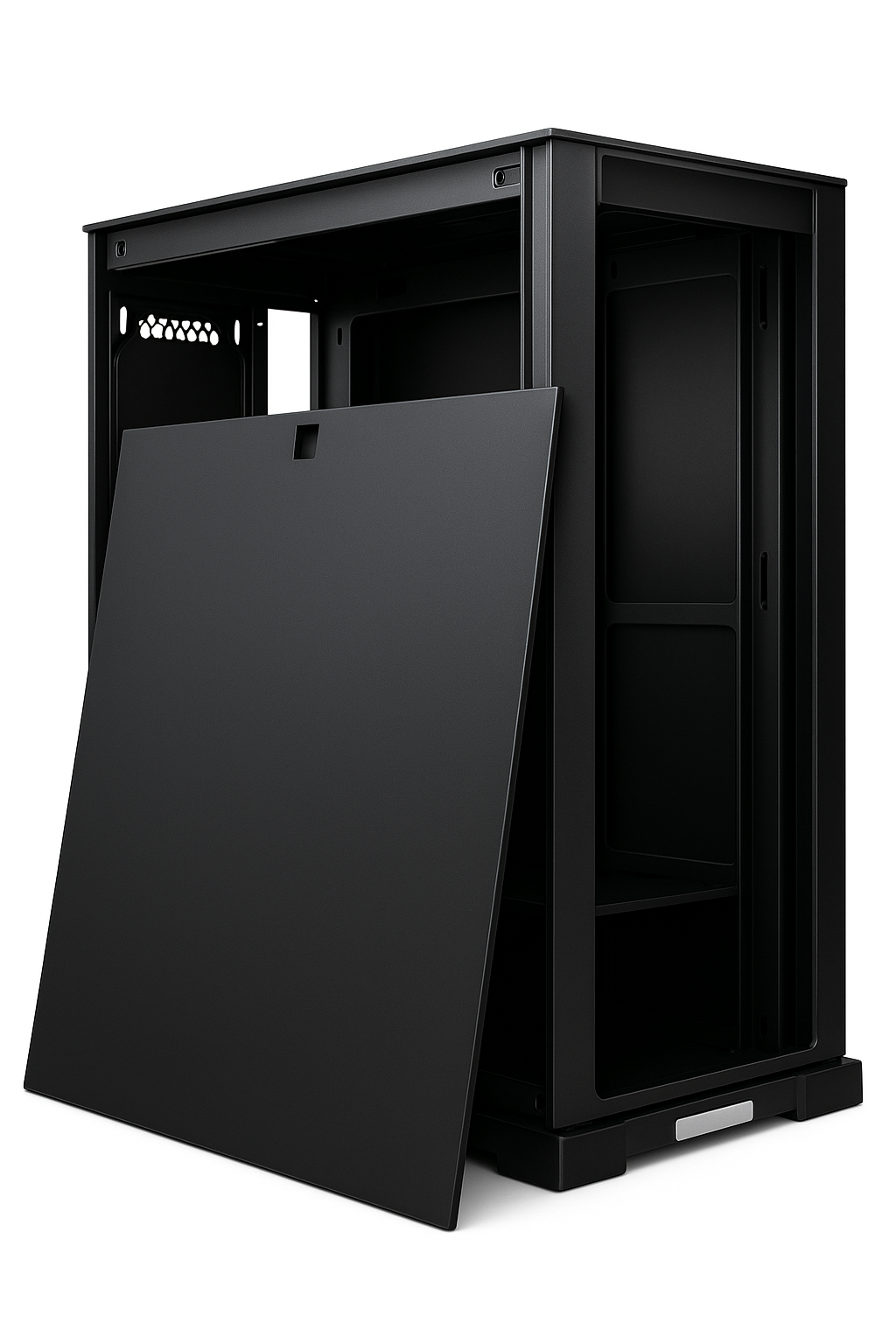

Assembly Features

There are two combining parts on the front and rear columns, which is convenient and quick to combine the cabinets. Adopts a detachable design of upper and lower sections, which is convenient for disassembly and assembly without tools.

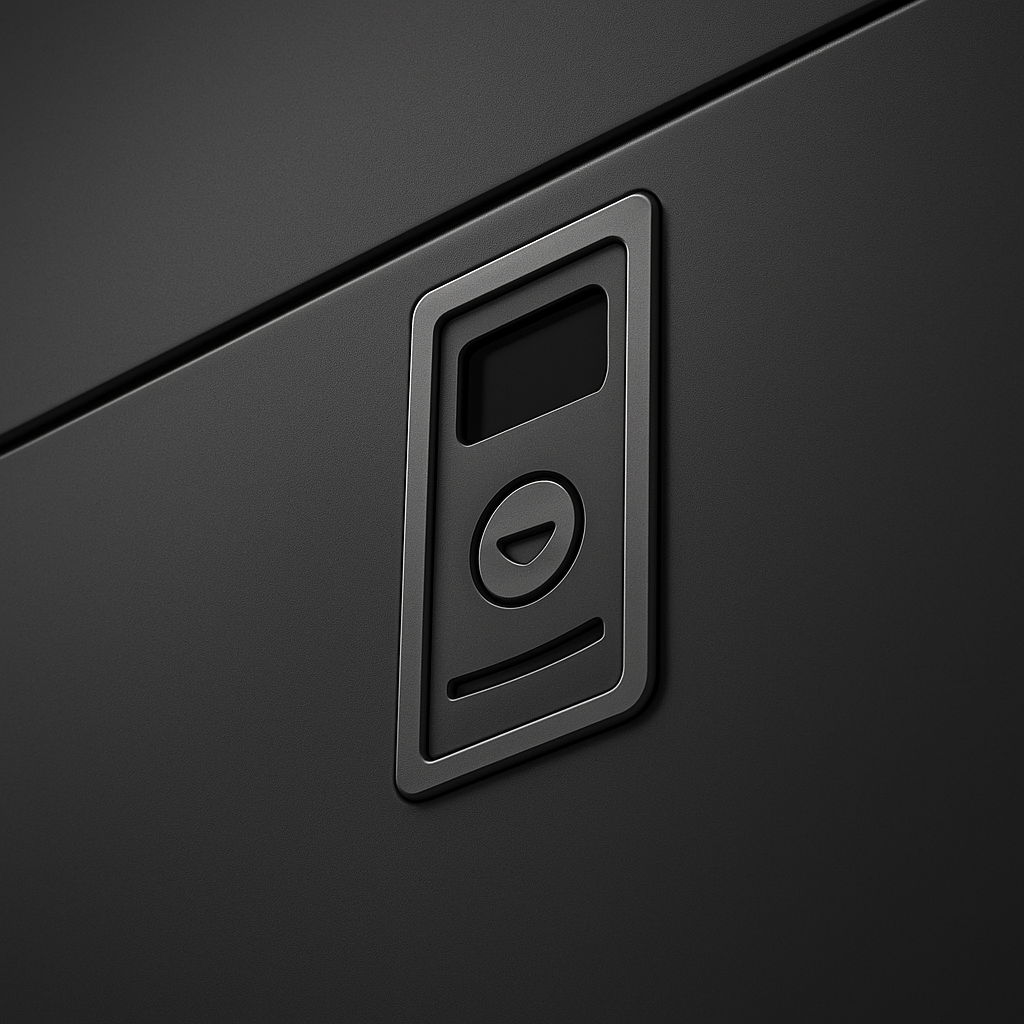

Doors can be quickly disassembled to facilitate on-site construction. Equipped with a special key to improve the operation safety.

Cable Management

Multiple cable management channels reserved at the top and bottom of the cabinet, and can be adjusted as needed.

Cable management solution:

  • • Top in and top out
  • • Bottom in and bottom out
  • • Top in and bottom out
  • • Bottom in and top out

Thermal Management

Cabinet heat dissipation management solution:

  • • Forward air return
  • • Upper air supply
  • • Bottom air supply

Power Management

Cabinet power management solution:

  • • Optional modular power distribution unit
  • • Rack PDU
  • • Vertical hanging PDU

Structural Features

Equipped with cabinet installation base to reinforce the cabinet fixation and enhance the earthquake resistance effect.

Assembled structure design, the maximum static load can reach 1500Kg (using supporting feet or base). Maximum Moving load 1000Kg (install casters to move the cabinet).

Rich and complete optional accessories.

NPOD Container Data Center

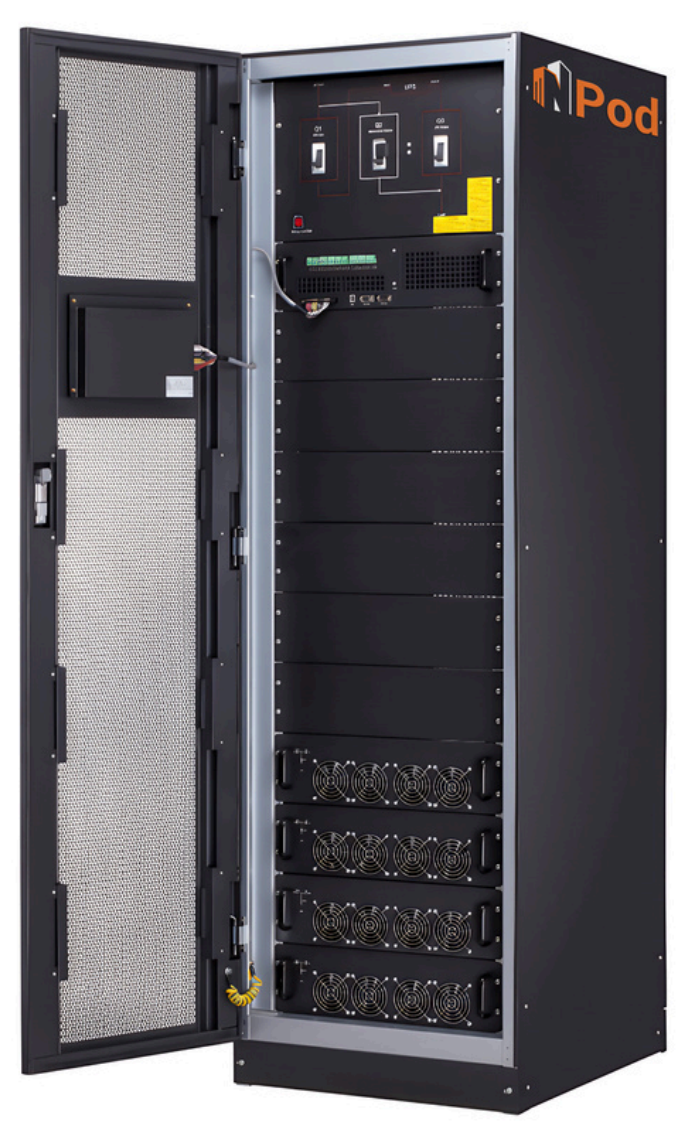

Power Supply & Distribution System Modular UPS

The modular UPS solution can be flexibly configured with 80–300kVA, according to the customer's requirements. The module adopts advanced high-frequency switching technology, fully digital DSP control technology and the world’s leading active PFC and LLC topologies to achieve high input power factor, accurate output current sharing performance, and reliable monitoring and management system.

It provides safe, reliable and pure AC power. Modular design for easy expansion. Output power factor Output PF=1(KVA=KW). N+1 or N+R parallel redundant application design to increase system flexibility, stability and safety. Modular design is applied to power supply modules, STS modules and batteries.

The modules are easy to update and maintain, which can reduce maintenance costs. Adjustable charging current, the maximum charging current of each module can reach 8A. 10" touch LCD screen + graphic design, the display is more intuitive and clear.

SPECIFICATIONS

Module Specification Size (D*W*H mm) Weight (kg)
SUB20K 3P/3P 20KVA/20KW 650×440×132 (3U) 34
SUB30K 3P/3P 30KVA/30KW 650×440×132 (3U) 34.5
Product Specifications

Modular UPS Technical Specifications

Type CN-UM80-120K CN-UM140-210K CN-UM200-300K
Cabinet Capacity 80KW/120KW 140KW/210KW 200KW/300KW
Battery External battery pack
Power module capacity SUB20K 20kVA/20kW SUB30K 30kVA/30kW 30kVA/30kW
Number of installable modules 4 7 10
Input
Rated voltage 380VAC/400VAC/415VAC (3-phase 5-wire)
Voltage range 305~478VAC 100% load; 208~304VAC <70% load
Rated frequency 50/60Hz (Automatic selection)
Frequency Range 40Hz~70Hz
Input power factor ≥0.99 (100% load); ≥0.98 (50% load)
Current harmonic distortion <3% (100% load)
Output
Rated voltage 380VAC/400VAC/415VAC (3-phase 5-wire)
Voltage stability (steady) ±1% typical value (balanced load); ±2% typical value (unbalanced load)
Voltage stability (transient) ±5% standard value
Rated frequency 50/60Hz
Frequency range 46Hz~54Hz or 56Hz~64Hz
Overload capacity 60min at 110%; 10min at 125%; 60s at 150%; 20ms at 150%
Harmonic distortion ≤2%THD (linear load); ≤5%THD (non-linear load)
Efficiency >94.5% (50% load)
Battery/Charge
Rated voltage +/-216V (12Vx36 Cell)
Maximum voltage +/-420V (12Vx42 Cell)
Lowest voltage +/-192V (12Vx32 Cell)
Float voltage 2.25V/Cell
Fast charge voltage 2.35V/Cell
Temperature compensation Yes
Maximum charging current 8A
Physical Properties
Cabinet size (WD*H mm) 600*1200*2000
Number of slots 4 7 10
Applications
Operating temperature 0~40°C
Relative humidity 0~95% non-condensing
Altitude <1000m (de-rate 1% for every 100m above)
IP protection level IP20
Control Management
RS-232/USB Support Windows ® 2000/2003/XP/Vista/2008, Windows ® 7, Linux, MAC
SNMP (Optional) Power management supports SNMP management and network management
Standards
Safety standard IEC/EN 60950-1; IEC/EN 62040-1
Electromagnetic regulations IEC/EN 62040-2 Category C3

Battery

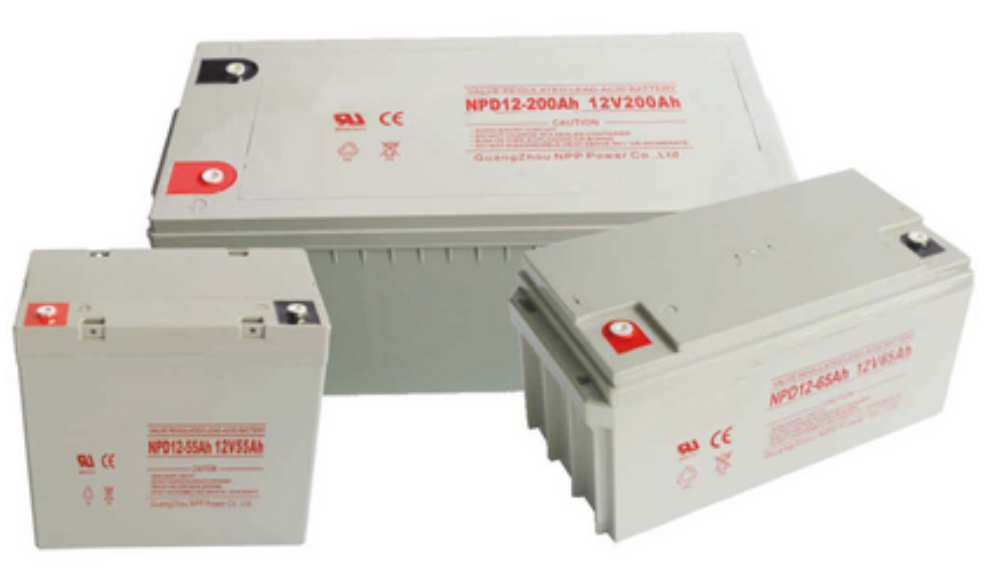

Battery Image

According to the application requirements of small and medium-sized data centers and large IDC computer rooms, Coolnet has launched SBA series valve-regulated lead-acid batteries. SBA series lead-acid batteries are similar but different according to different application requirements of different data computer rooms and UPS applications.

With the advanced design technology concept and advanced automated production process, the product design, performance requirements, reliability and process control are close to the actual application of customers, and the optimal configuration of the system is realized from the perspectives of comprehensive technical indicators, cost performance and compatibility. Compared with the same type of batteries in the industry, Yimikang SBA series VRLA batteries have better rate characteristics and better quality assurance, and provide the best configuration solutions for different backup application requirements of data rooms and UPS systems.

NPOD BATTERY FEATURES

Battery Model Specifications

Battery Model Rated Voltage (V) Cge10 (Ah) Battery Size (L*W*H*TH) Weight (Kg) Internal Resistance Terminal Options
CN-BA12-40Z 12 40 198×166×169×169 12.4 8 F11(M6)
CN-BA12-65Z 12 65 350×167×182×182 20.0 7 F11(M6)
CN-BA12-100Z 12 100 328×172×215×220 29.0 5.5 F12(M8)
CN-BA12-120Z 12 120 407×177×225×225 34.0 4.5 F12(M8)
CN-BA12-150Z 12 150 483×170×241×241 43.7 4.4 F12(M8)
CN-BA12-200Z 12 200 522×240×219×224 59.0 4 F10(M8)
CN-BA12-240Z 12 240 522×240×219×224 67.5 3.6 F10(M8)

DISTRIBUTION SYSTEM

Centralized

For small data centers, the precision power distribution cabinet can be integrated with the power distribution cabinet to supply power to each cabinet in all modules. For large data centers, the power supply and power distribution cabinets are centrally configured, and each micro-module is equipped with a separate precision power distribution cabinet for power supply.

Distributed: UPS + power distribution integrated solution

The UPS+distribution integrated solution is mainly used in modular centers. It deploys power and power distribution inside the micro-modules of each data center, and integrates power, batteries and corresponding power distribution in a single cabinet. For long-term backup power requirements, the battery can be independent into a cabinet.

Distributed: UPS, power distribution independent solution

UPS and power distribution independent solutions are mainly used in modular centers, where power and power distribution are separately deployed in the micro-modules of each data center. The power supply and power distribution are configured independently in different cabinets, which can support micro-modules with high power density requirements in the cabinet.

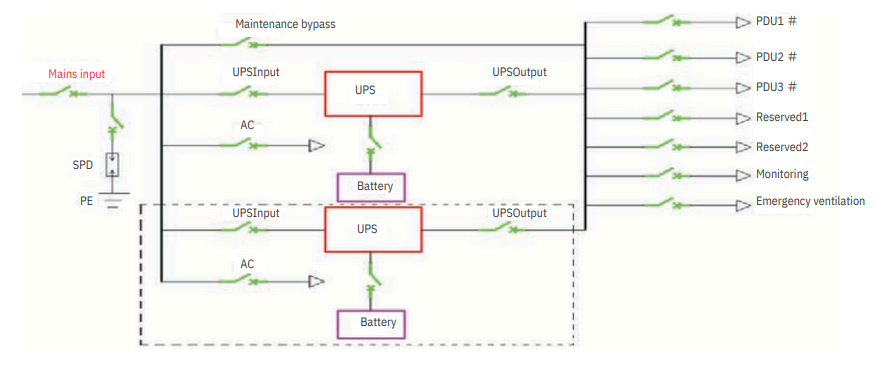

System Topology Diagram

SYSTEM TOPOLOGY

The standard topology of the power supply and distribution system of the intelligent cabinet, and the system architecture meets the C/B class computer room standards specified in GB 50174-2017.

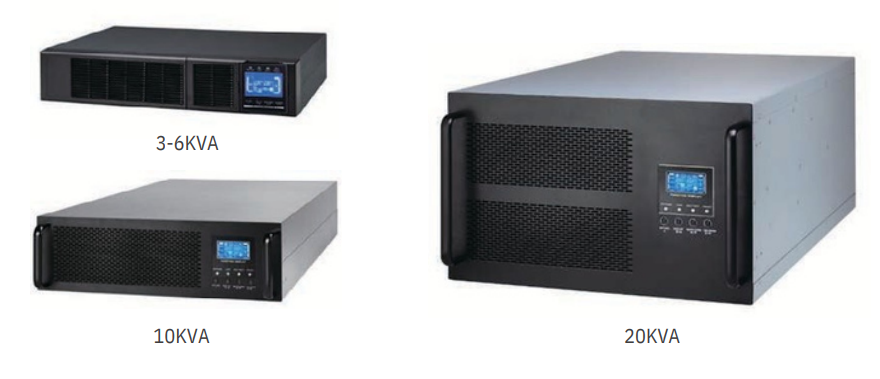

UPS

The UPS products with rack-mounted design can be directly installed on a 19-inch standard rack, and the appearance style is consistent with the cabinet. Wide range of input voltage and frequency, able to adapt to various complex power usage environments. Compatible with generator access.

System Topology Diagram

Parameters

Type SUA1103L
3KVA/2.4KW		 SUA1106L
6KVA/4.8KW		 SUA1110L
10KVA/8KW		 SUA3320L
20KVA/18KW
Power Specifications L+N+PE 3L+N+PE
Voltage Range (50% Load) 160~280VAC 110~300VAC 176~300VAC 190~520VAC
Voltage Range (100% Load) 160~280VAC 110~300VAC 176~300VAC 305~478VAC
Frequency Range 47~53 Hz 46~54 Hz --
Input Power Factor ≥0.99 (100% load) 400V (Three-phase)
Output Voltage 208/220/230/240V (Single-phase) --
Voltage Accuracy ±1%
Frequency Accuracy ±0.25Hz ±0.1Hz ±0.1Hz
Overload Capacity 105~110%: 10min
110~130%: 1min
>130%: 3s		 100~110%: 30min
110~130%: 5min
>130%: 10s bypass		 Same as SUA1106L
Current Peak Ratio 3:1 (max)
Harmonic ≤3% (Linear load) ≤5% (Non-linear load)
Switching Time 0ms
Output Power Factor 0.8 -- 0.9
Waveform Pure sine wave
Inverter Mode IGBT
Efficiency >90% >92% >93% >91%
Standard-V 8×12V 16~20×12V -- 18~20×12V
Recharging Current-A 1A, 2A, 4A, 6A (optional) 4A
LCD Description Displays load size, battery/mains mode, bypass, faults, and battery capacity. Output voltage adjustable via on-screen menu with frequency bypass.
Size (DxWxH mm) 410×438×88 530×438×88 580×438×133 668×438×266
Weight (KG) 14.2 15 18 45
Operating Temperature 0~40°C
Operating Humidity 20~90% (non-condensing)
Operating Altitude <1000m (derated by 1% every 100m)
Operating Noise <50dB< /td> <55dB< /td> <58dB< /td> <65dB< /td>
Smart RS-232 or USB Supports WindowsXP/Vista/2008, Windows 7/8, Linux, Unix, MAC
Optional SNMP Supports SNMP management and web browser

WHY NPOD?

Huge savings in capital investment & Time to Deploy. Can be deployed to Tier 2 and Tier 3 cities very quickly. Purpose Built, Mobile & Plug and Play Prefab flexible steel containers. Customized, factory tested, prebuilt, modular PUF Insulated, Fire suppression systems, PAC/DUCT air conditioning systems, Chilled Water or Refrigerant type support. Power Distribution – DG Set and Electricity Board. No water requirement, No civil works. IT RACKS, UPS, Servers from leading suppliers with SLAs. Built-in Redundancy and High availability. Easy-to-deploy, Remotely managed Fire Alarm and monitoring System. SLAs and Product guarantees.
