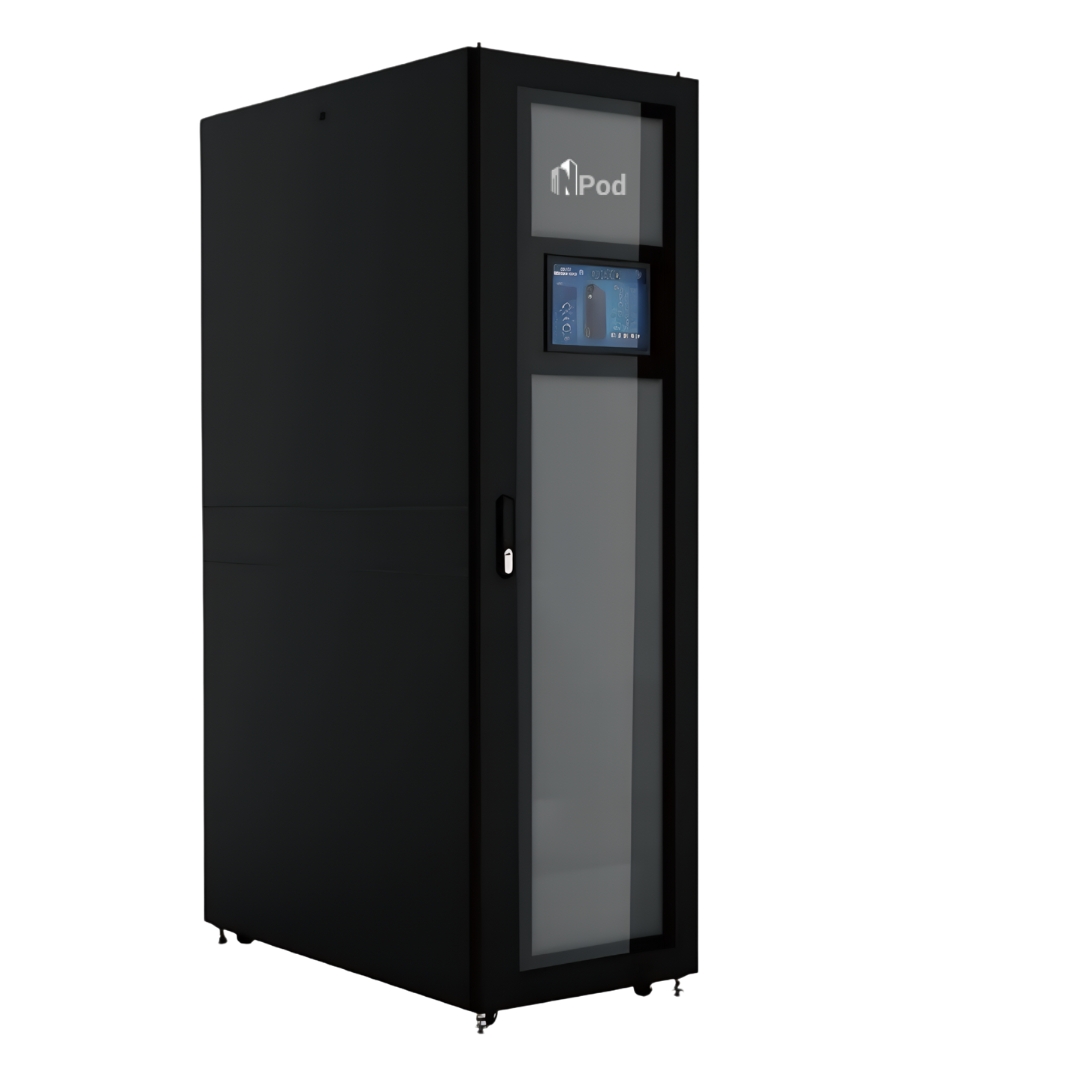

NPod Micro Data Center

NPod | Micro Data Center Solutions

We Optimize Every Aspect of Outdoor Shelter DC Designs.

As one of the pioneers in modular data centers, we follow the trends of the digital future with full attention to the challenges faced by Telecom operators and data center managers. We are dedicated to exploring innovative solutions to provide more energy-efficient, economical, and flexible configurations to better match your current and future needs.

🏷️ Solution Benefits

Flexibility

  • 24U to 42U cabinet with IP55 protection, access control & video monitoring
  • Compact with standard 19" frame, fits most IT gear
  • Supports 48VDC & AC UPS systems

Optimized Efficiency

  • Wall/rack/in-row cooling for better airflow
  • Cold/hot air separation enhances efficiency
  • Uses inverter compressors, EC fans, green refrigerant

Rapid Deployment

  • Designed for all environments – outdoors, rooftops, warehouses
  • Factory prefab enables fast deployment

Standardized Management

  • Remote monitoring and management with standardized modules

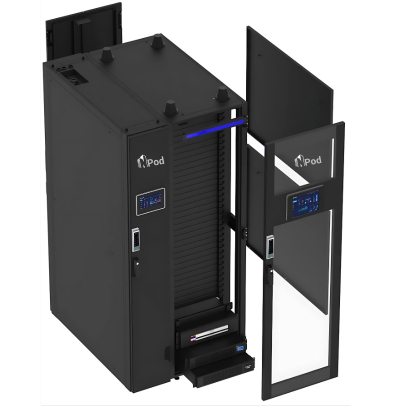

NPod Cabinet

Various Predefined Cabinet, Fulfill Your Applications.

NPodsolution includes a variety of predefined configurations with multiple options for key components such as cabinets, air conditioning, power systems, monitoring system, access control, fire protection, etc. to meet your various application needs.

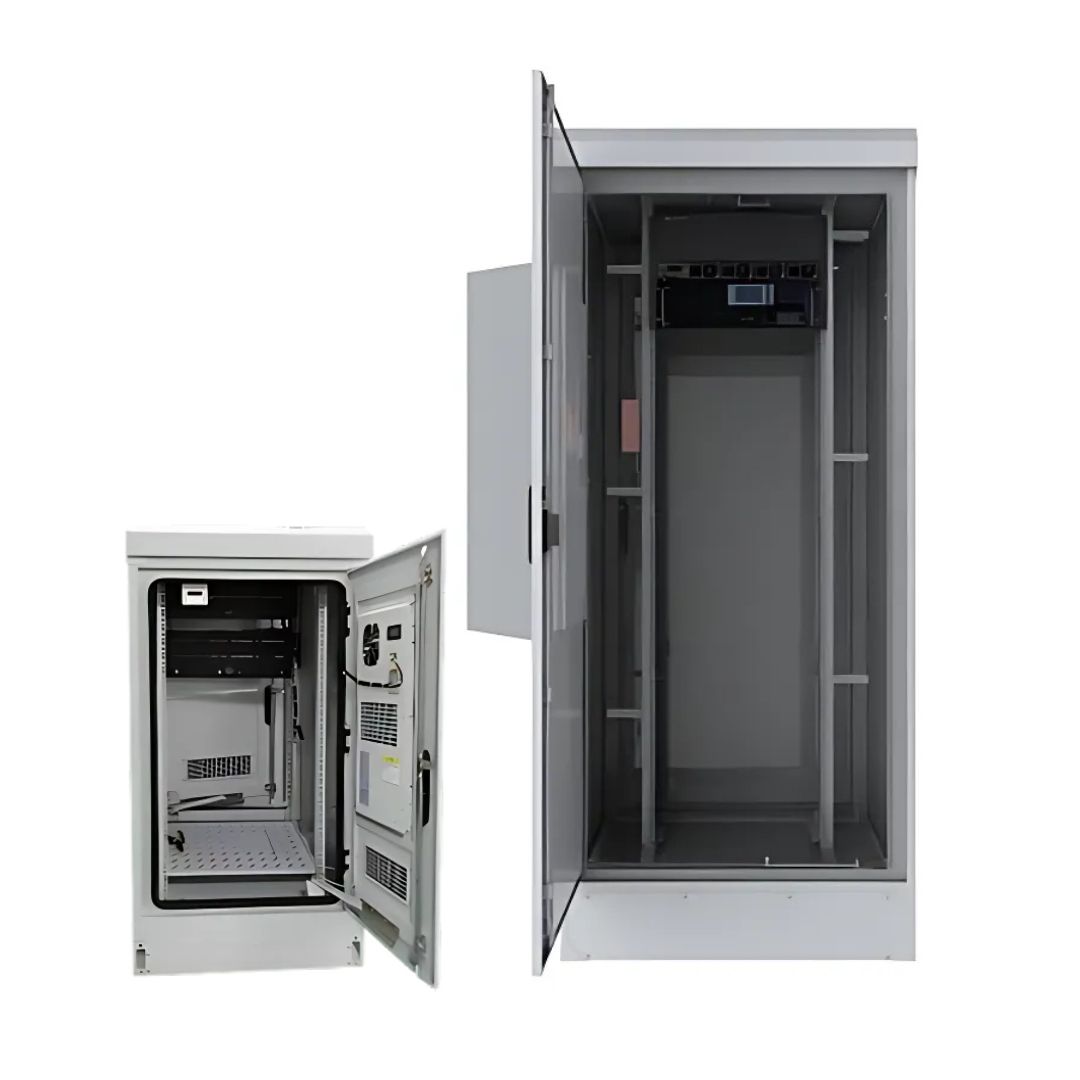

📡 Outdoor Cabinet for Telecom Applications

  • 24U to 42U IP55 water/dust protection cabinet with built-in standard 19" frame
  • Fan ventilation kit and wall mount cooling (optional)
  • Steel sandwich doors with thermal insulation (front & rear)
  • Wall / floor mount installation method
  • Operating temp: -40°C ~ 55°C
Telecom Cabinet

🏢 Outdoor Cabinet for Modular Data Center

  • Multiple 12U/24U/32U/42U cabinets with condenser space & support frame
  • Steel sandwich doors with thermal insulation (front & rear)
  • Front and back maintenance access
  • Operating temp: -40°C ~ 55°C
Modular Cabinet

Adaptable Power Solutions, Ensure Safety at All Moments.

Standard modular design components easy to be integrated into compact cabinets saving space and reducing complexity. Provide efficient, reliable and flexible power protection.

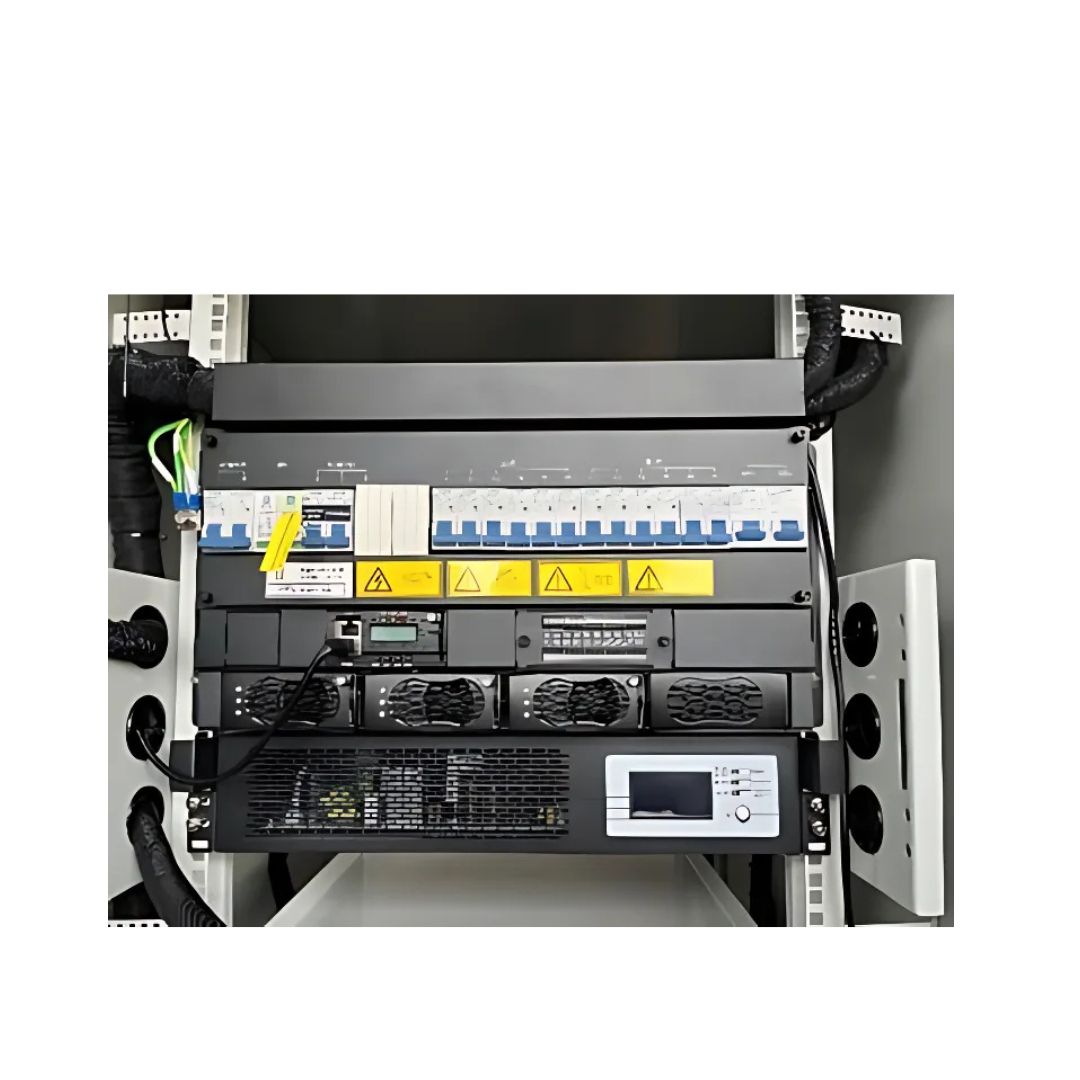

🔌 48VDC Power System

  • Standard 19” rack mount design
  • Rectifier / Solar module options
  • Hot swap Plug & Play installation
  • EPS Inverter module for AC support
  • Up to 75°C high temperature operation
  • Lithium-iron battery supported
  • Remote monitoring interfaces
48VDC Power

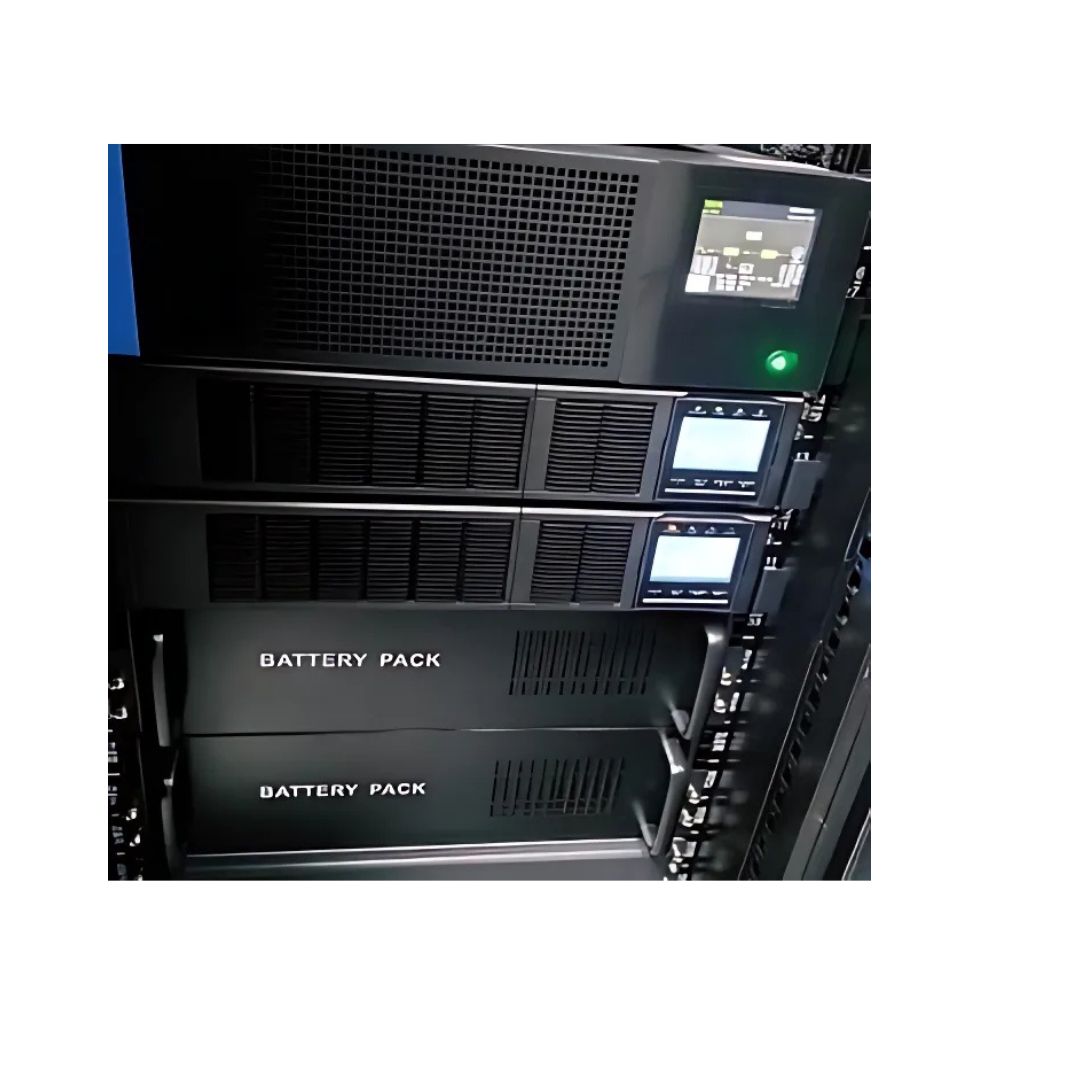

⚡ UPS AC Power System

  • Modular rack mount UPS design
  • DSP dual-conversion for reliability
  • Voltage: 220-240 / 380-415V
  • Battery management for long life
  • SNMP + USB + RS232 monitoring
  • 3–600KVA scalable specs
UPS AC System

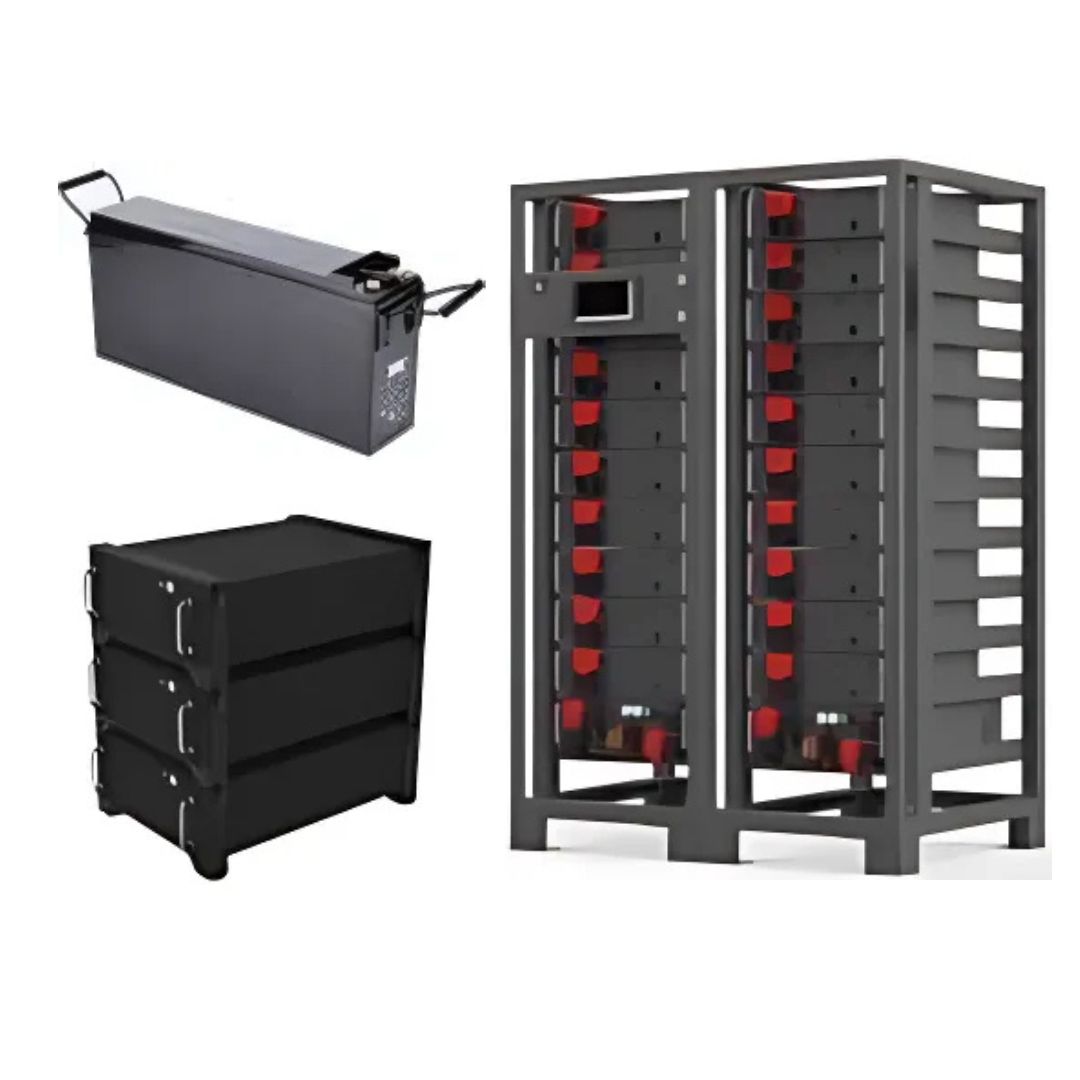

🔋 NPodLi Battery System

  • UPS / 48V Telecom battery options
  • No complex setup – plug & play
  • Safety: over-current & short-circuit
  • 19” compact rack mount module
  • Intelligent BMS for alerts
Battery System

Optimized Efficiency with Various Precision Configurations

Tailored cooling systems engineered to deliver high performance and resilience in demanding telecom and micro data center environments.

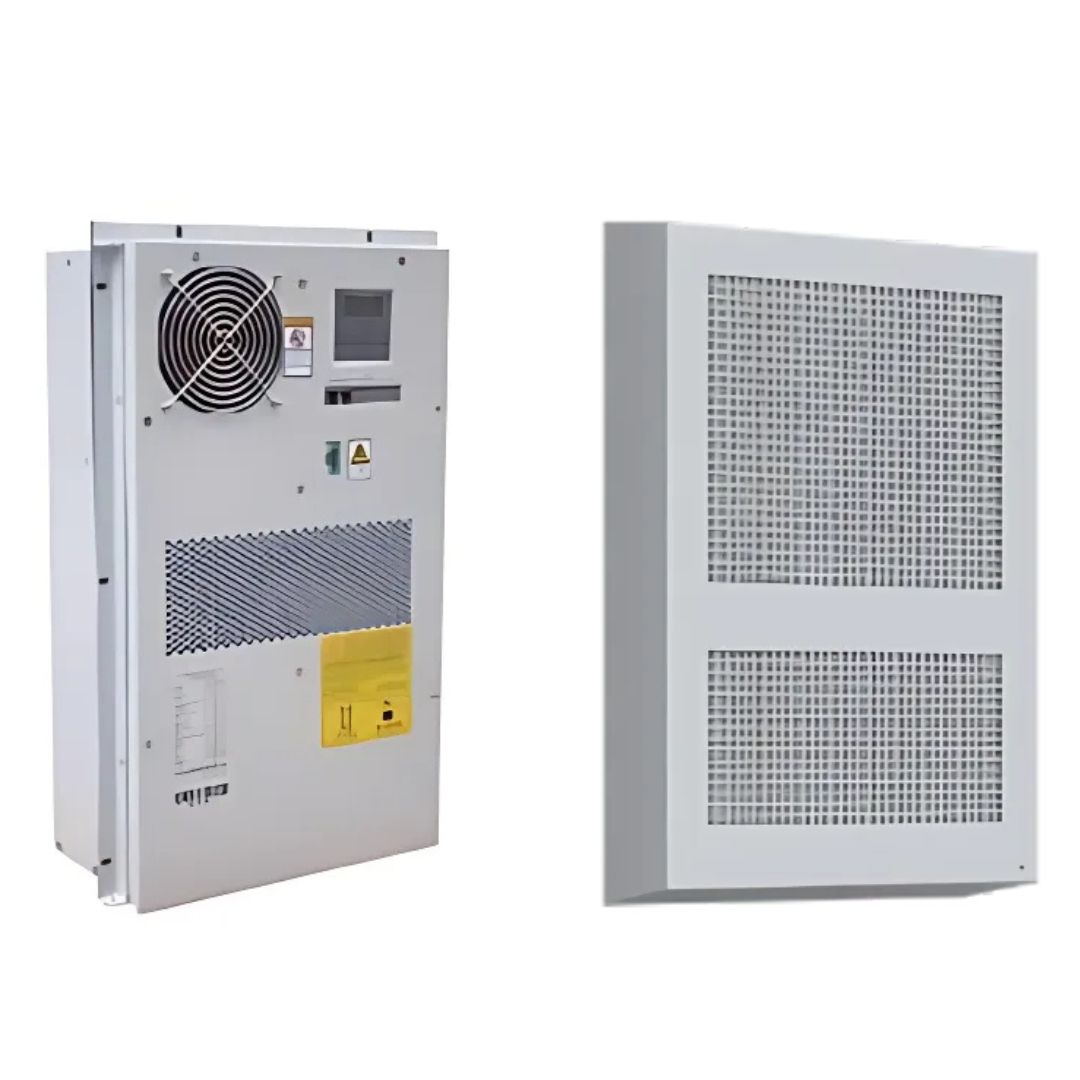

Cooling System for Telecom

  • 48VDC and 208–240VAC input options
  • IP55 wall mount design – saves rack space
  • Durable powder-coated metal for harsh conditions
  • Eco-friendly refrigerant with zero ozone impact
  • Performs efficiently from -40°C to 55°C
Cooling System for Telecom

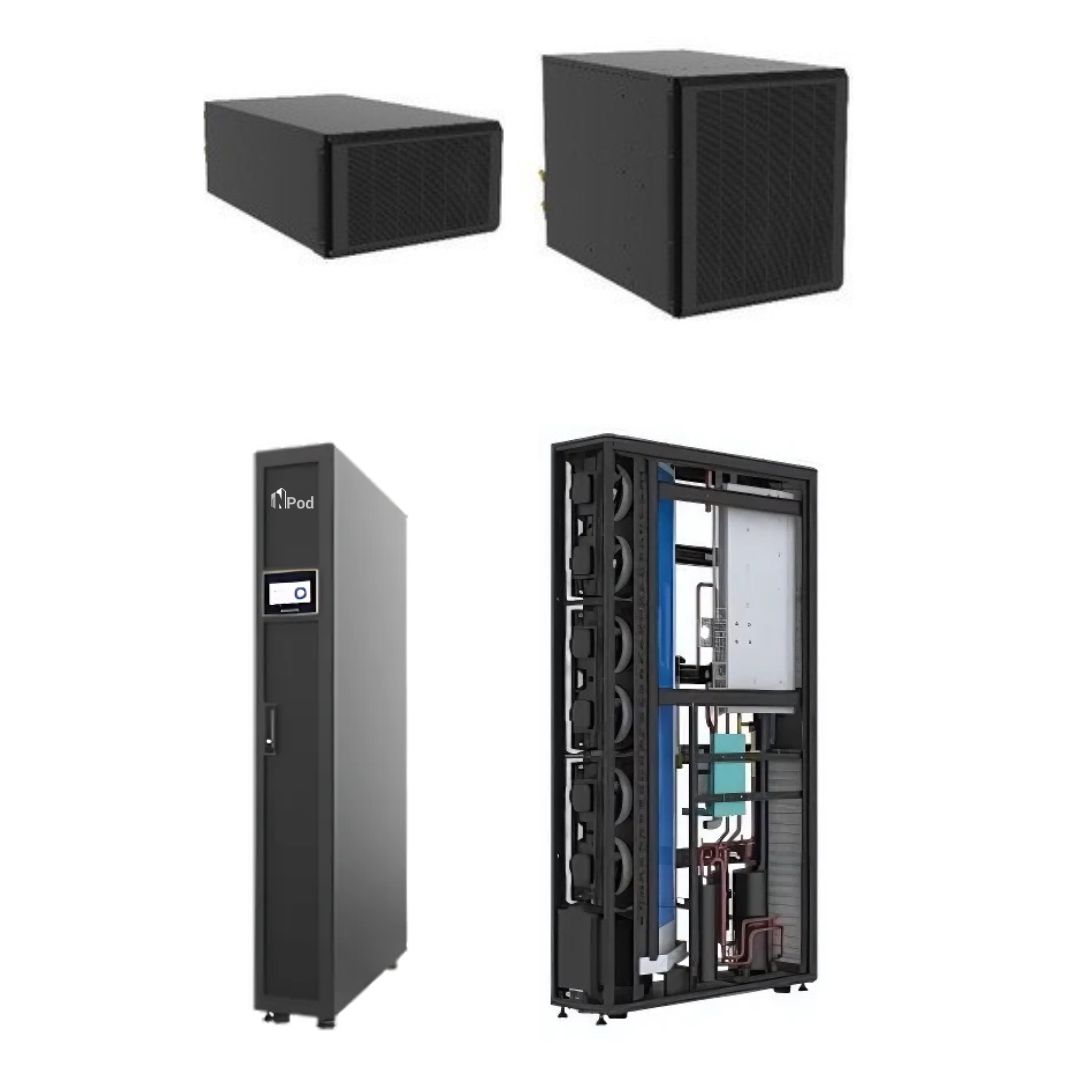

Cooling System for MDC

  • High-efficiency EC fans and inverter compressor
  • CFD-optimized cold/hot air airflow design
  • Optional indirect free cooling to reduce PUE
  • Pre-assembled system for fast deployment
  • Operating range from -40°C to 55°C
Cooling System for MDC

Comprehensive Monitoring, Support Your Smarter Decisions.

Smart DCIM System communicates with all key aspects through a full range of sensors to monitor the status of the infrastructure. Real-time alerts and notifications allow operators to proactively identify and address any issues promptly. Intelligent monitoring platform open to integrated with your BMS system, achieve remote centralized manage and monitoring, help organizations effectively manage and monitor their infrastructure, ensuring optimal performance, resource utilization, and security.

Cooling System

NPod Overview

Discover how our integrated power solutions optimize your data center operations.

Technical Data | US Power –208-230/3P/50~60Hz

Product Model NPOD-03-H01W NPOD-06-H02W NPOD-6-H01K NPOD-10-H02K NPOD-10-H02R NPOD-20-H03K Customize
Available Space for IT -U 33U 71U 26U 66U 69U 94U <= 142U
Available Power for IT -kW 1.3 2.5 3.5 5.0 7.0 12.0 Per Definition
Redundancy N N N N+1 / 2N N+1 / 2N N+1 / 2N Per Definition
Width - mm 900 1810 900 1810 1810 2600 >2600
Depth - mm 1080 1080 1080 1080 1080 1080 Per Definition
Height - mm 2105 2105 2105 2300 2300 2300 Per Definition
Weight - kg 165 345 260 1160 1160 1242 Per Definition
IP Level IP54 IP65 IP65 IP65 IP65 IP65 Per Definition
Input Power 208-240V/2P/60Hz 208-240V/2P/60Hz 208-240V/2P/60Hz 208-240V/2P/60Hz 208-230V/3P/50-60Hz 208-230V/3P/50-60Hz Per Definition
Recommended Breaker 32A 1P 63A 1P 63A 1P 63A 3P 63A 3P 63A 3P Per Definition
Power Section
UPS x kVA Optional Optional Optional 10.0 13.0 20.0 3 - 200kVA
UPS Mount Type Optional Optional Rack Rack Rack Rack Per Definition
Standard UPS Battery Optional Optional 2* VRLA 12V9AH 16PCS 2* VRLA 12V9AH 16PCS 2* VRLA 12V9AH 16PCS 4* VRLA 12V9AH 16PCS < 4 hour
AC PDU 1* Basic 8 Slots 2* Basic 8 Slots 1* Basic 16 Slots 2* Basic 16 Slots 2* Basic 16 Slots 3* Basic 16 Slots 4* Configurable
-48VDC - A 2* 30A 30A Optional Optional Optional Optional 0 - 600A
Standard 48VDC Battery Lithium 1* 48V50AH Lithium 1* 48V50AH Optional Optional Optional Optional < 4 hour
48VDC Power Distribution BLVD 63A/Terminals BLVD 63A/Terminals 3* 63A/Terminals Optional Optional Optional Per Definition
Cooling Section
Cooling Type Packaged DX Packaged DX Split DX Split DX Split DX Packaged / Split Custom
Mount Type Wall Wall Rack Rack Row Wall / Rack / Row Custom
Capacity - kW 1.5 2*1.5 3.9 5.9 7.6 12.8 1.5 - 90.0kW
DCIM Section
Local Display Touch Screen Touch Screen Touch Screen Touch Screen Touch Screen Touch Screen Touch Screen
Remote Access Web Access Web Access Web Access Web Access Web Access Web Access Web Access
Reporting Protocol Modbus-TCP Modbus-TCP Modbus-TCP Modbus-TCP Modbus-TCP Modbus-TCP Modbus-TCP
UPS Mgmt. Yes Yes Yes Yes Yes Yes Yes
Cooling Mgmt. Yes Yes Yes Yes Yes Yes Yes
Temp. & Hum. Sensor Yes Yes Yes Yes Yes Yes Yes
Fire Sensor Smoke Smoke Smoke Smoke Smoke Smoke Smoke
Water Sensor Yes Yes Yes Yes Yes Yes Yes
Door Sensor Front/Rear Front/Rear Front/Rear Front/Rear Front/Rear Front/Rear Front/Rear
Security Section
Access Control RFID/Key RFID/Key RFID/Key RFID/Key RFID/Key RFID/Key RFID/Key
Video Surveillance Optional Optional Optional Optional Optional Optional Optional
Fire Fighting Section
Fire Extinguisher FM200 Rack Module (Opt.) FM200 Rack Module (Opt.) FM200 Rack Module (Opt.) FM200 Rack Module (Opt.) FM200 Rack Module (Opt.) FM200 Rack Module (Opt.) FM200 Rack Module (Opt.)
Early Detection Vesda (Opt.) Vesda (Opt.) Vesda (Opt.) Vesda (Opt.) Vesda (Opt.) Vesda (Opt.) Vesda (Opt.)
