NPOD ESS – 10 KVA
High-Capacity Energy Storage & Online UPS Solution
The NPOD ESS – 10 KVA provides dependable power protection and energy storage for higher-demand critical applications. It combines continuous online power protection, efficient energy management and flexible battery options to support reliable business operations.

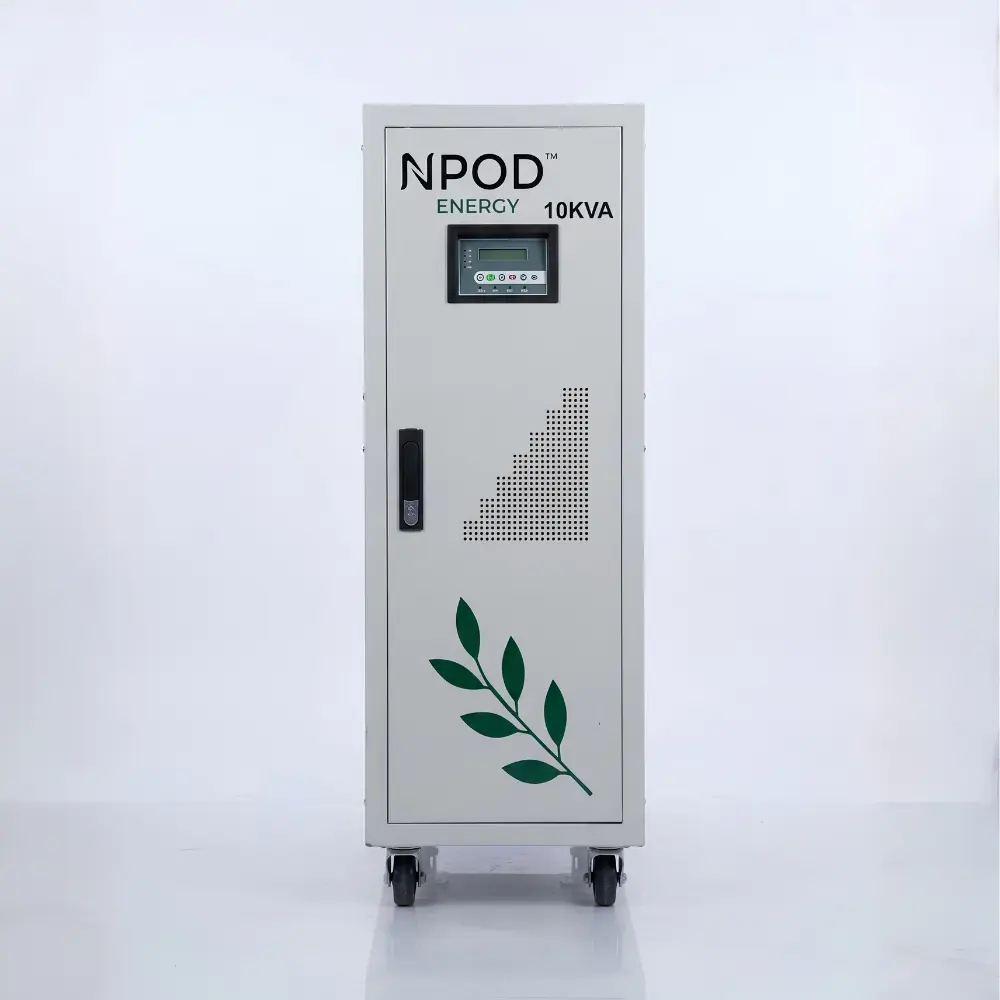

NPOD ESS 10 KVA
Designed for reliable power protection, continuous operation and efficient energy management for higher-demand critical applications.
Online Double Conversion Technology
Continuous online power protection for critical applications.
High Efficiency Operation
Efficient power conversion designed for dependable operation.
Wide Input Voltage Range
Supports an input voltage range of 110–300 VAC.
Stable & Clean Output Power
Provides stable output power for sensitive and critical equipment.
Power Factor of 1.0
Designed for efficient utilization of available power capacity.
Zero Transfer Time
Continuous power protection without transfer interruption.
LCD Display
Clear system monitoring through an integrated LCD display.
Flexible Battery Options
Supports Lead Acid and optional LiFePO4 battery configurations.
Multiple Communication Interfaces
RS232, RS485, SNMP and Dry Contact communication options.
| SPECIFICATIONS | 10 KVA |
|---|---|
| Power & Technology | |
| Capacity | 10000VA / 10000W |
| Technology | Online Double Conversion |
| Input | |
| Input Voltage | 208/220/230/240 VAC |
| Input Voltage Range | 110 – 300 VAC (Phase to Neutral) |
| Input Frequency | 40 – 70 Hz |
| Output | |
| Output Voltage | 208/220/230/240 VAC |
| Output Voltage Regulation | ±1% |
| Output Frequency | 50/60 Hz ± 0.1% |
| Power Factor | 1.0 |
| THD | ≤2% (Linear Load) |
| Performance & Monitoring | |
| Efficiency | Up to 96% (ECO Mode) |
| Transfer Time | Zero Transfer Time |
| Display | LCD Display |
| Communication | RS232 / RS485 / SNMP / Dry Contact |
| Battery | |
| Battery Type | Lead Acid / LiFePO4 (Optional) |
| Backup Time (Full Load) | Depends on Battery Capacity |
| Physical | |
| Dimensions | 10 KVA Configuration |
| Weight Without Battery | 10 KVA Configuration |
