Energy Storage System
NPOD ESS – 3 KVA
Scalable Energy Storage & Online UPS Solution
The NPOD ESS – 3 KVA is designed for applications that require dependable backup power and continuous protection for critical equipment. Its online double-conversion technology, high efficiency and scalable battery configuration support reliable operation as power requirements grow.
Product Details

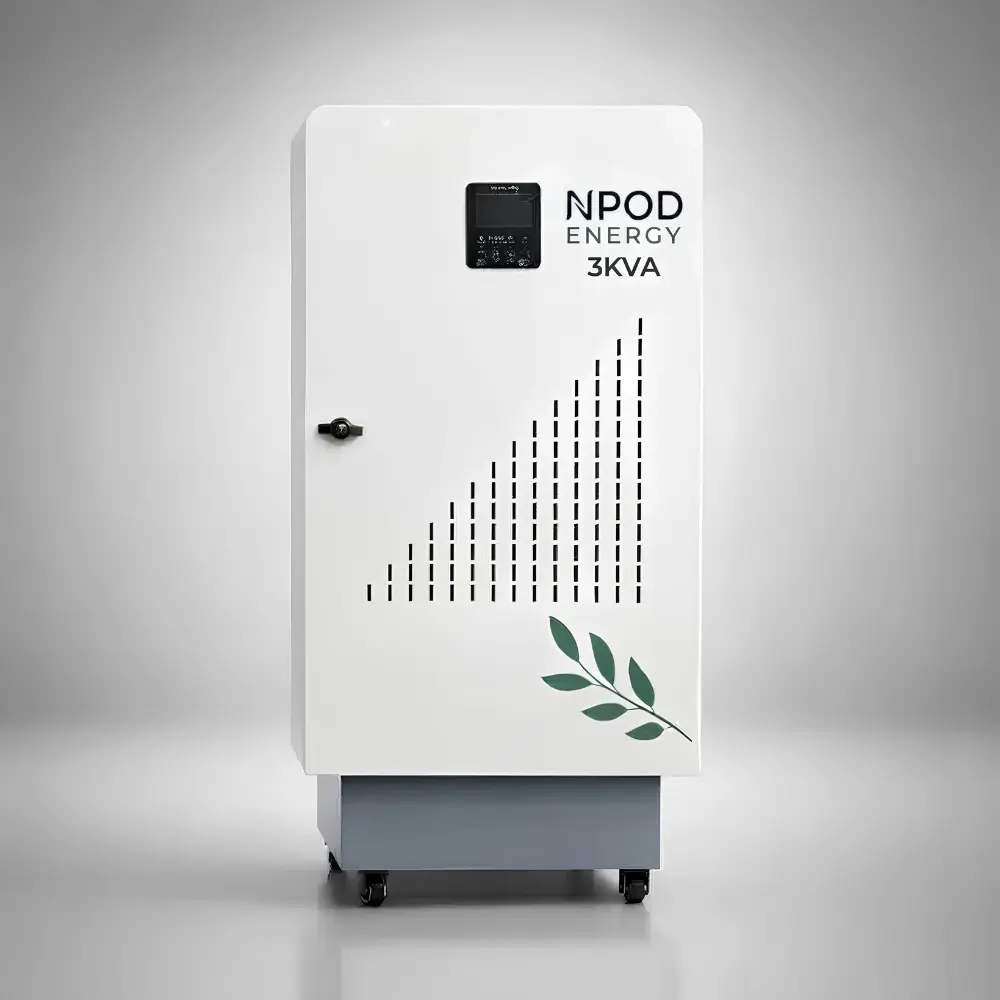

NPOD ESS 3 KVA
Designed for reliable power protection, continuous operation and efficient energy management.
Online double conversion technology
High efficiency operation
Wide input voltage range of 110–300 VAC
Stable and clean output power
Power factor of 1.0
Zero transfer time
LCD display for system monitoring
Lead Acid / LiFePO4 battery options
RS232 / RS485 / SNMP / Dry Contact communication
Higher-capacity solution for critical loads
| Power & Technology | |
| Capacity | 3000VA / 3000W |
|---|---|
| Technology | Online Double Conversion |
| Input | |
| Input Voltage | 208/220/230/240 VAC |
| Input Voltage Range | 110–300 VAC (Phase to Neutral) |
| Input Frequency | 40–70 Hz |
| Output | |
| Output Voltage | 208/220/230/240 VAC |
| Output Voltage Regulation | ±1% |
| Output Frequency | 50/60 Hz ±0.1% |
| Power Factor | 1.0 |
| THD | ≤2% (Linear Load) |
| Performance & Monitoring | |
| Efficiency | Up to 96% (ECO Mode) |
| Transfer Time | Zero Transfer Time |
| Display | LCD Display |
| Communication | RS232 / RS485 / SNMP / Dry Contact |
| Battery | |
| Battery Type | Lead Acid / LiFePO4 (Optional) |
| Backup Time (Full Load) | Depends on Battery Capacity |
| Physical | |
| Dimensions (W × D × H) | 230 × 450 × 550 mm |
| Weight (Without Battery) | 29 kg (Approx.) |
