NPOD ESS – 2 KVA
Reliable Energy Storage & Online UPS Solution
The NPOD ESS – 2 KVA is a reliable energy storage and online UPS solution designed to provide stable, clean and uninterrupted power protection for critical equipment. With online double-conversion technology, high efficiency and flexible battery configuration, it supports dependable operation for critical applications.

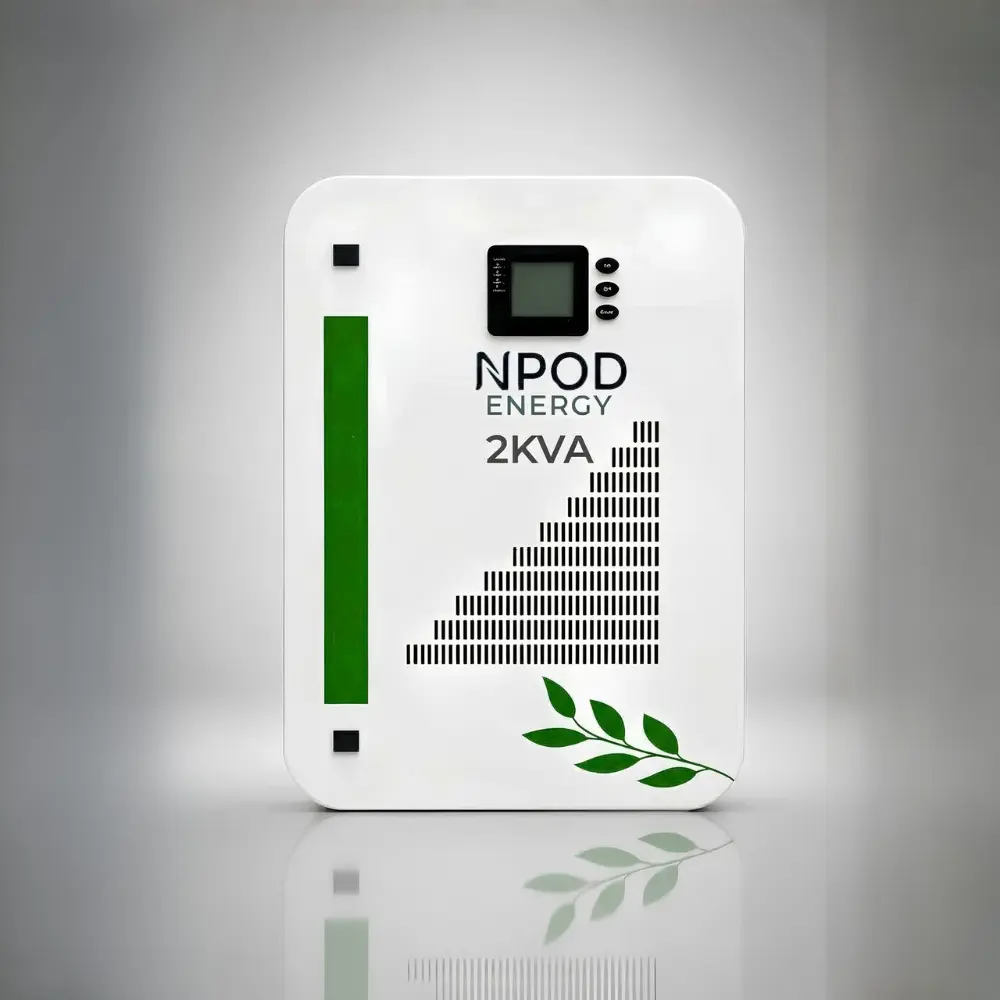

NPOD ESS 2 KVA
Designed for reliable power protection, continuous operation and efficient energy management.
Online double conversion technology
High efficiency operation
Wide input voltage range of 110–300 VAC
Stable and clean output power
Power factor of 1.0
Zero transfer time
LCD display for system monitoring
Lead Acid / LiFePO4 battery options
RS232 / RS485 / SNMP / Dry Contact communication
Compact and space-efficient solution
| Power & Technology | |
| Capacity | 2000VA / 2000W |
|---|---|
| Technology | Online Double Conversion |
| Input | |
| Input Voltage | 208/220/230/240 VAC |
| Input Voltage Range | 110–300 VAC (Phase to Neutral) |
| Input Frequency | 40–70 Hz |
| Output | |
| Output Voltage | 208/220/230/240 VAC |
| Output Voltage Regulation | ±1% |
| Output Frequency | 50/60 Hz ±0.1% |
| Power Factor | 1.0 |
| THD | ≤2% (Linear Load) |
| Performance & Monitoring | |
| Efficiency | Up to 96% (ECO Mode) |
| Transfer Time | Zero Transfer Time |
| Display | LCD Display |
| Communication | RS232 / RS485 / SNMP / Dry Contact |
| Battery | |
| Battery Type | Lead Acid / LiFePO4 (Optional) |
| Backup Time (Full Load) | Depends on Battery Capacity |
| Physical | |
| Dimensions (W × D × H) | 220 × 420 × 450 mm |
| Weight (Without Battery) | 22 kg (Approx.) |
