ESS-1KVA
Reliable Online UPS Power Protection Solution
The NPOD 1 KVA Online UPS is a compact and reliable power protection solution designed to provide clean, stable and uninterrupted power for critical equipment. With online double-conversion technology, high efficiency and advanced battery management, it delivers dependable performance for demanding power environments.

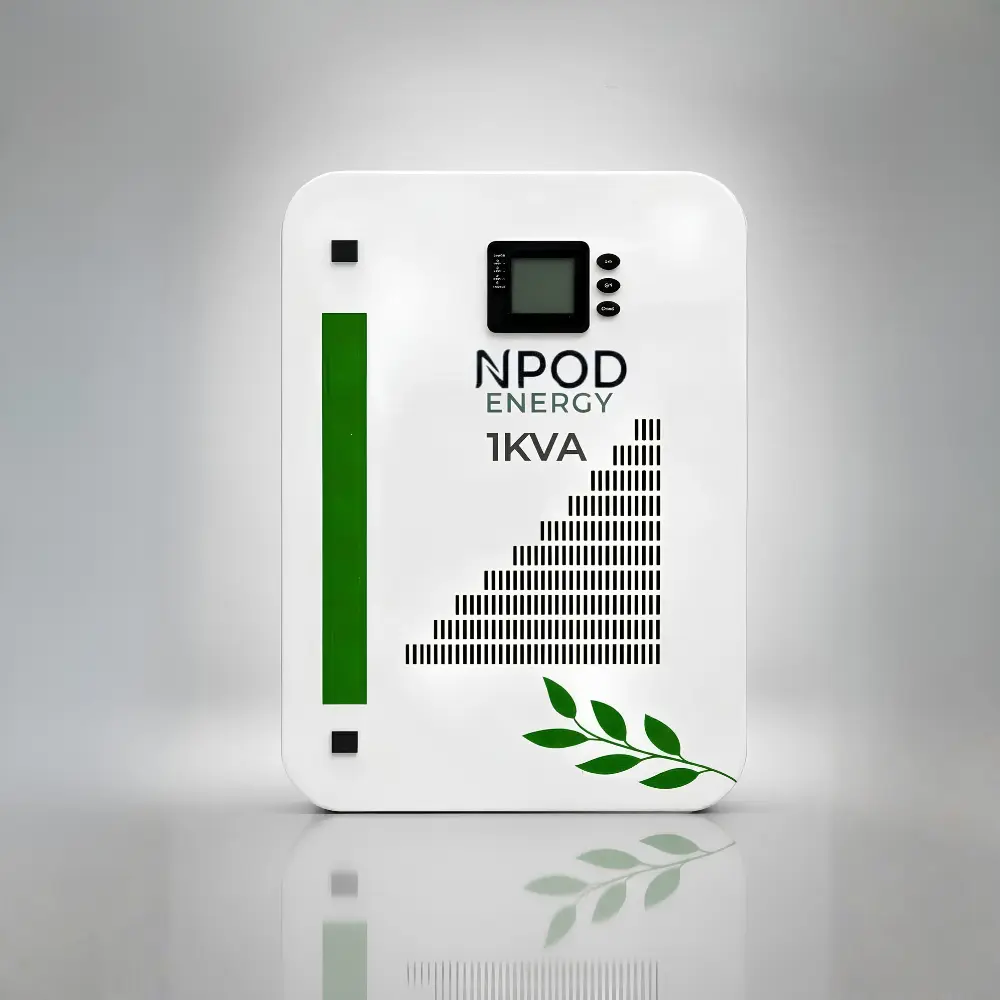

NPOD 1 KVA Online UPS
Designed for reliable power protection, efficient energy management and continuous operation of critical systems.
High energy on wheels (UPS with Li-ion battery)
Full LCD with LED indications
High efficiency UPS (On-line mode 94%, ECO mode 99%)
Plug & play unit, easy installation with wall mount design
Pure sine wave, safe for your sensitive devices
Fast charging capability (80% within 2 hours)
Wide input voltage range (110V-300V AC)
Compact solution with smaller footprint
DG Compatible
| General | |
| Model | ENL1101B |
|---|---|
| Capacity (kVA / kW) | 1.0 / 0.8 |
| Input | |
| Nominal Voltage | 230V AC (1Ph+N+PE, 3 Wire) |
| Operating Voltage Range | 110V ~ 300V AC Load Dependent |
| Operating Frequency Range | 50 / 60 Hz ± 10% (Auto Sensing) |
| Power Factor | ≥0.99 |
| Output | |
| Output Voltage | 230V ±1% |
| Output Frequency | 50/60 Hz ± 0.1 Hz Battery Mode |
| Harmonic Distortion (THDv) | <3% (Linear load), <5% (Non Linear Load) |
| Crest Factor | 3:1 |
| Efficiency | Up to 94% Dual Conversion Mode, 99% ECO Mode |
| Battery | |
| DC Voltage | 36V DC |
| Back-up Time | 110-120 Minute on Connected Load |
| System Features | |
| LCD Indication | Input Voltage/Frequency, Output Voltage/Frequency, Battery Voltage, Load Watt/VA and %, Inverter Temperature, Operation Mode such as "On Line", "ON Batt" or "On Bypass", Fault Codes, Battery & Load Bar graph |
| LED Indication | Normal Operation, Bypass, Abnormal, Fault and Battery Mode |
| Alarms / Protection | Batt. Low, DC High, Inverter Under/Over Voltage, UPS Over Load, Short Circuit, Fan Failure and UPS Fault |
| Overload Capability | 105-150% for 10s, >150% for 5s |
| Transfer Time | AC to Battery: 0ms, Inverter to Bypass: 4ms (Typical) |
| Environmental | |
| Temperature | Operating 0~50°C, Storage -10°C ~ 55°C |
| Humidity / Altitude | 0~95% RH Non-condensing / <1500 M |
| Noise | <45dBA |
| Standards | |
| Quality | ISO 9001, ISO 14001, ISO 27001, ISO 45001, ISO 50001, RoHS |
| Safety / EMC / Performance | IEC/EN62040-1; IEC/EN62040-2; IEC/EN62040-3, Complying to CE |
| Physical | |
| Dimension W×D×H (mm) | 400 × 160 × 650 |
| Weight (Kg) | 25 |
| Communication Interface | |
| Standard | RS232, USB |
| Lithium-Ion Battery | |
| Chemistry | LFP |
| Operating Temperature | 0~50°C |
